Grism O300 - MOS

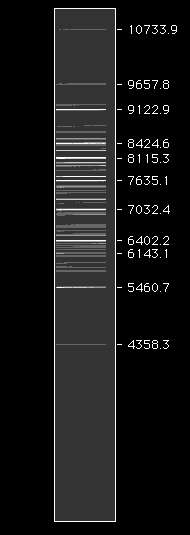

Neon-Argon-Mercury(Argon) Lamps

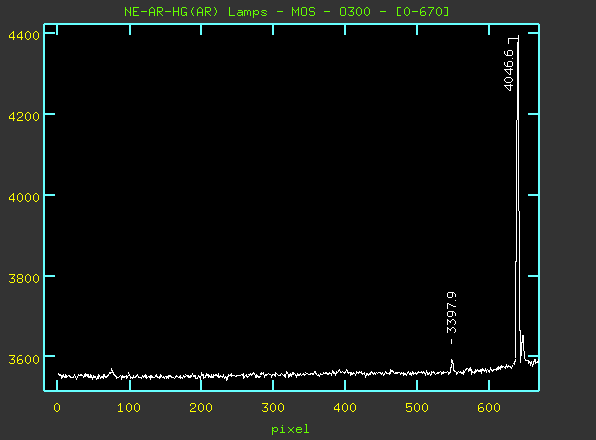

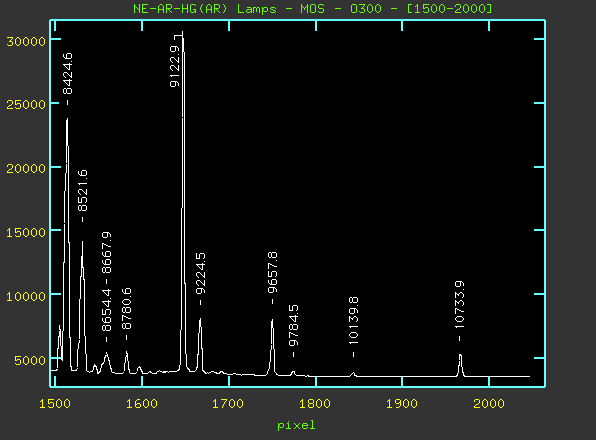

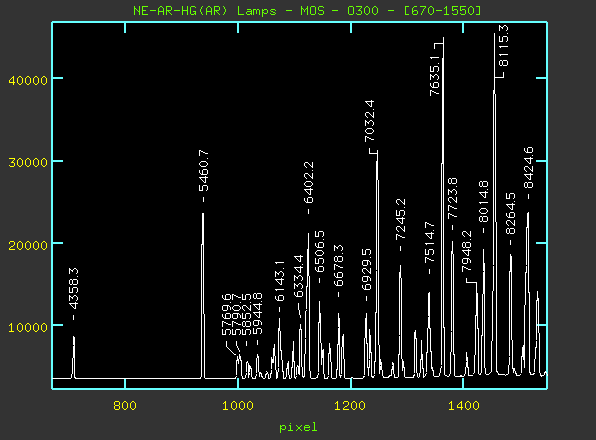

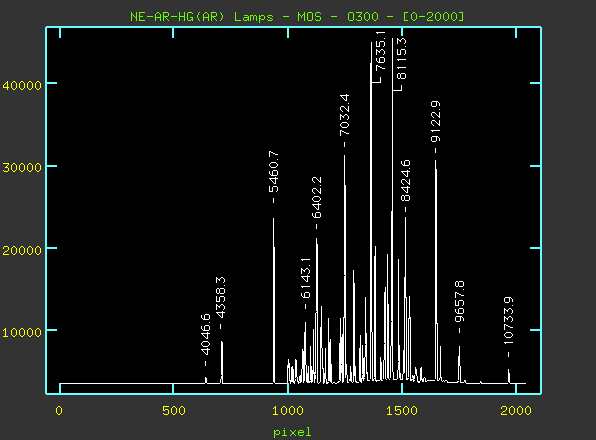

CUTS General Cut Cut Range [0-670] Cut Range [670-1550] Cut Range [1500-2000] NeArHg(Ar) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism O300 Order Sorting Filter None Exposure Times Ne: 2s, Ar: 3s, Hg(Ar): 4s Average Dispersion 5.09 Å/pix

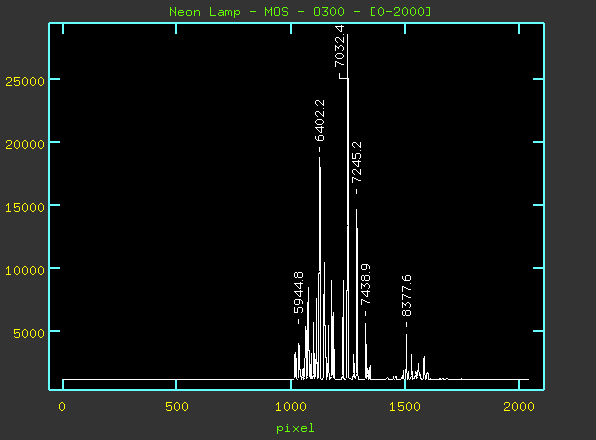

Neon Lamp

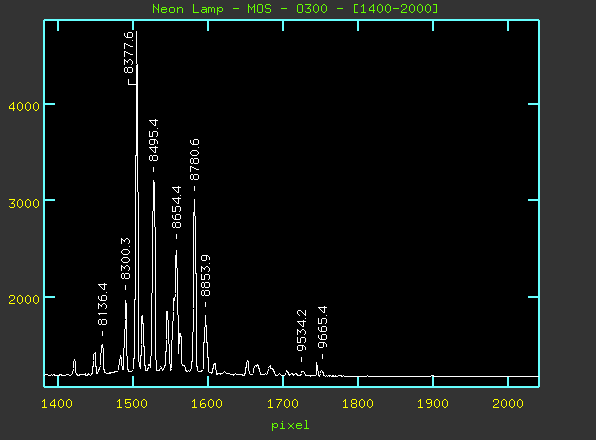

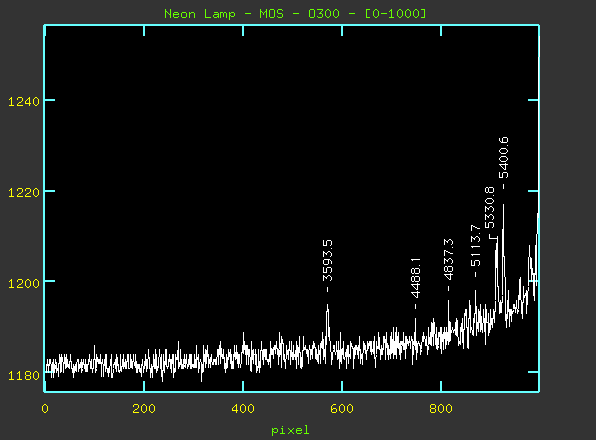

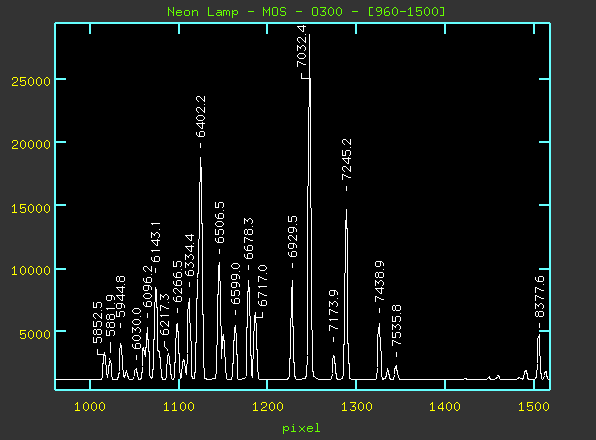

CUTS General Cut Cut Range [0-1000] Cut Range [960-1500] Cut Range [1400-2000] Neon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism O300 Order Sorting Filter None Exposure Times Ne: 2s Average Dispersion 5.09 Å/pix

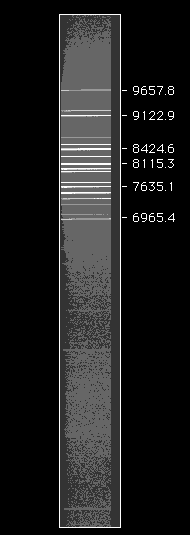

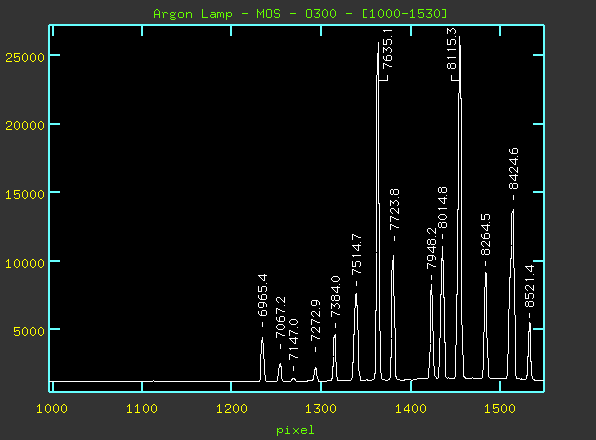

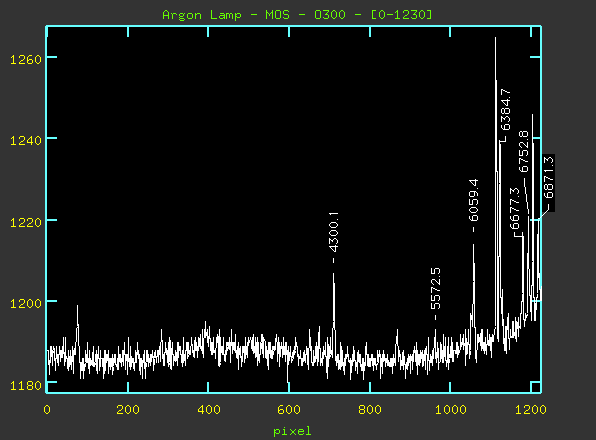

Argon Lamp

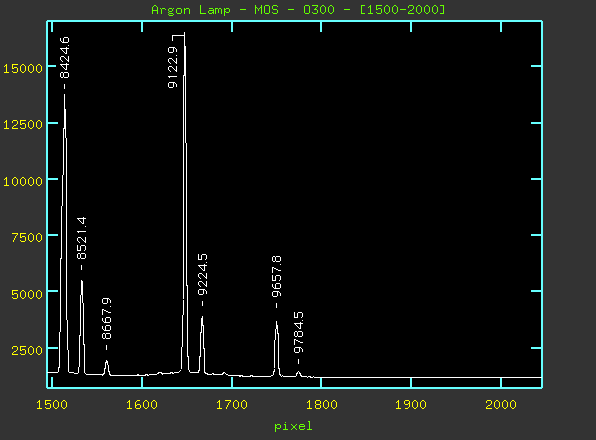

CUTS General Cut Cut Range [0-1200] Cut Range [1000-1530] Cut Range [1500-2000] Argon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism O300 Order Sorting Filter None Exposure Times Ar: 3s Average Dispersion 5.09 Å/pix

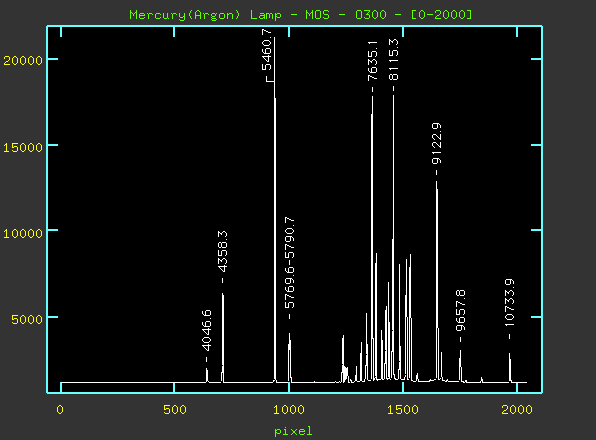

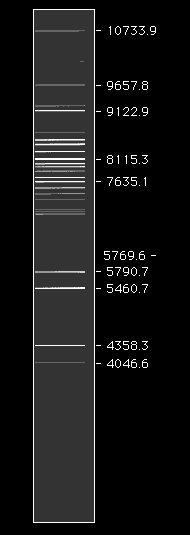

Mercury(Argon) Lamp

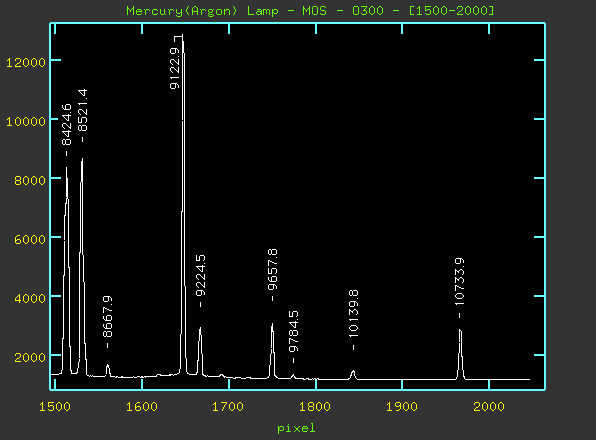

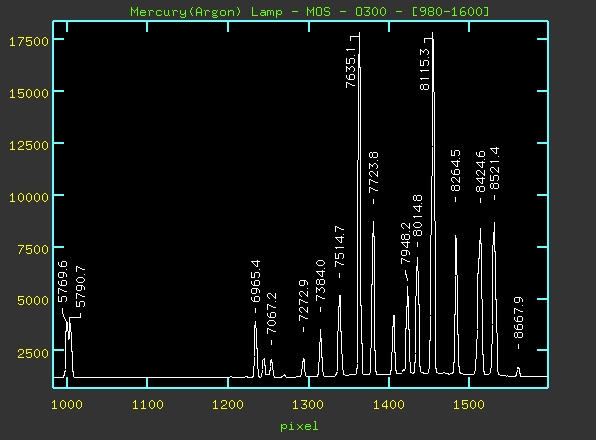

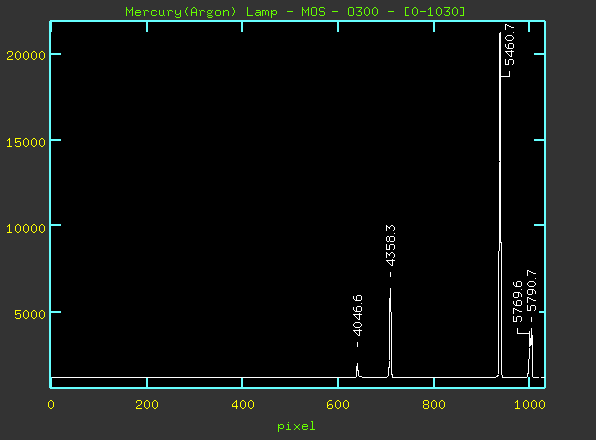

CUTS General Cut Cut Range [0-1030] Cut Range [980-1600] Cut Range [1500-2000] Mercury(Argon) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism O300 Order Sorting Filter None Exposure Times Hg(Ar): 4s Average Dispersion 5.09 Å/pix

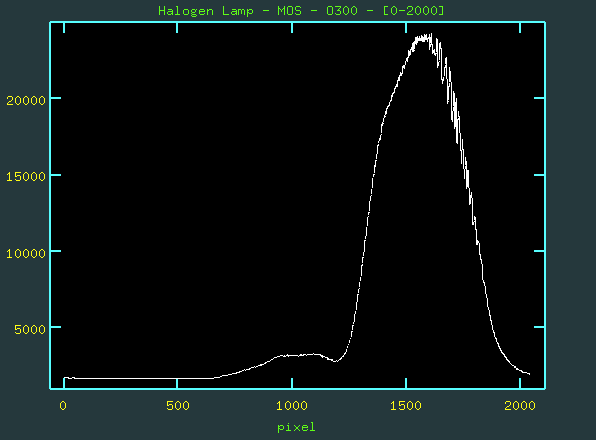

Halogen Lamp
