Grism R300 - MOS

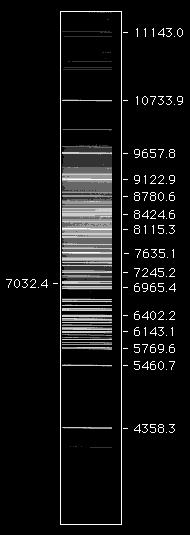

Neon-Argon-Mercury(Argon) Lamps

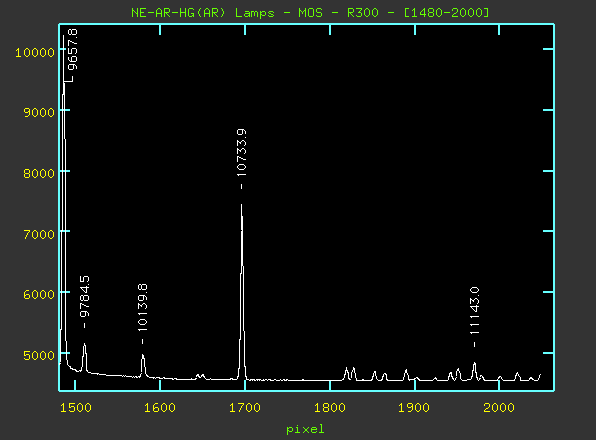

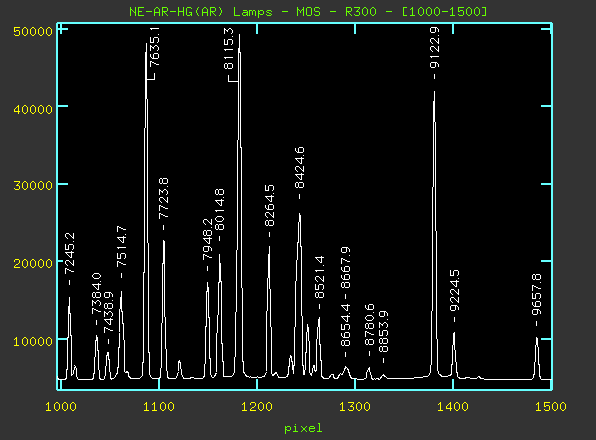

CUTS General Cut Cut Range [0-1020] Cut Range [1000-1500] Cut Range [1480-2000] NeArHg(Ar) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism R300 Order Sorting Filter None Exposure Times Ne: 4s, Ar: 4s, Hg(Ar): 8s Average Dispersion 4.82 Å/pix

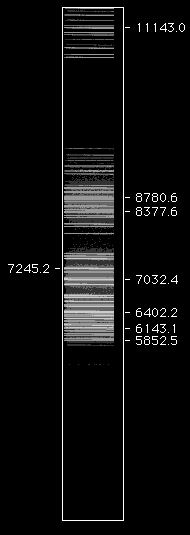

Neon Lamp

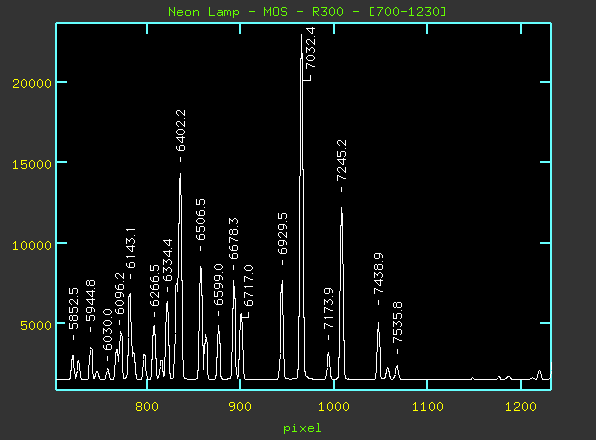

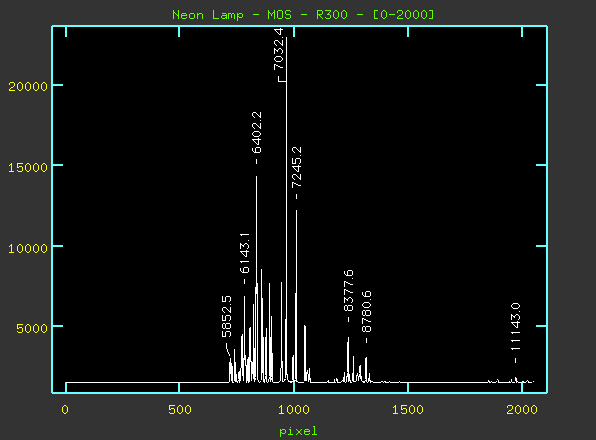

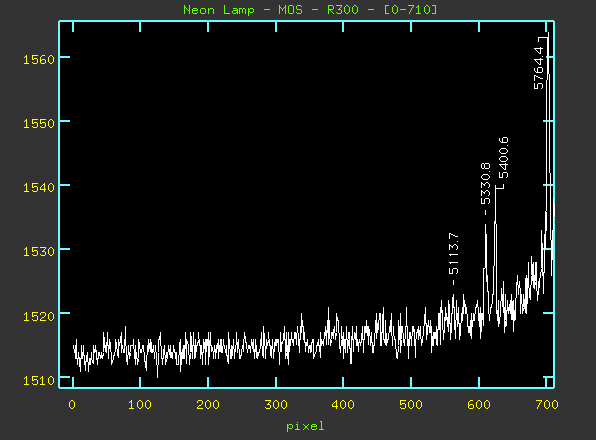

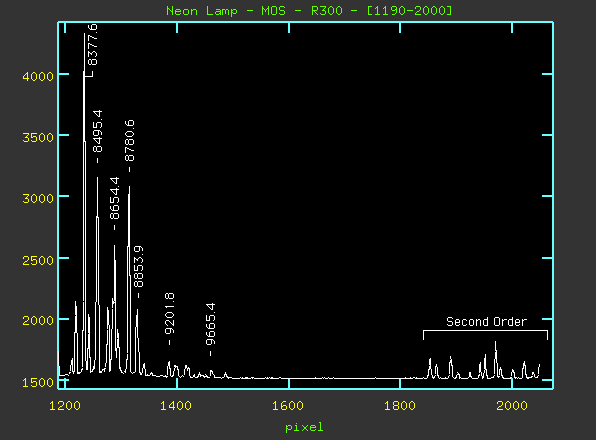

CUTS General Cut Cut Range [0-710] Cut Range [700-1230] Cut Range [1190-2000] Neon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism R300 Order Sorting Filter None Exposure Times Ne: 4s Average Dispersion 4.82 Å/pix

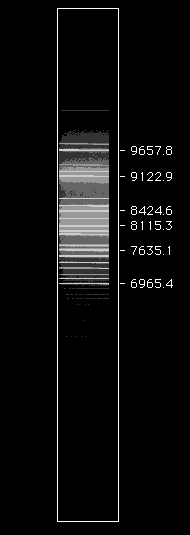

Argon Lamp

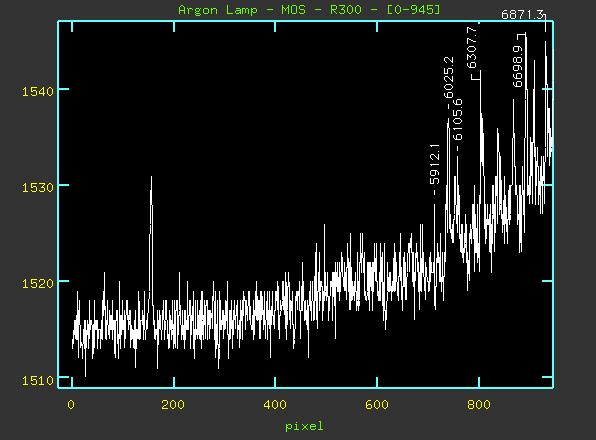

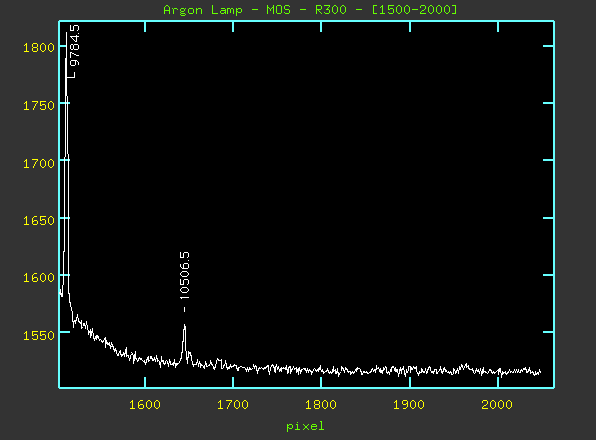

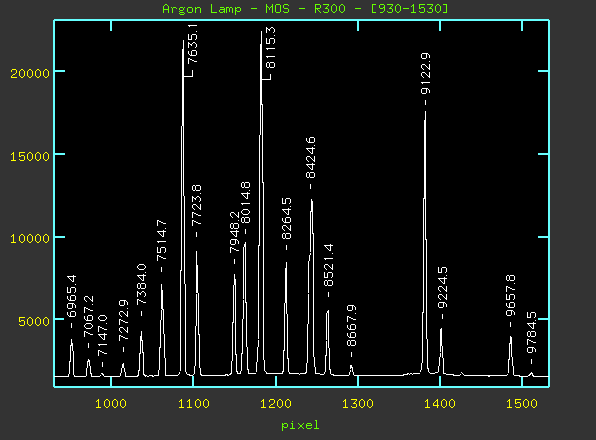

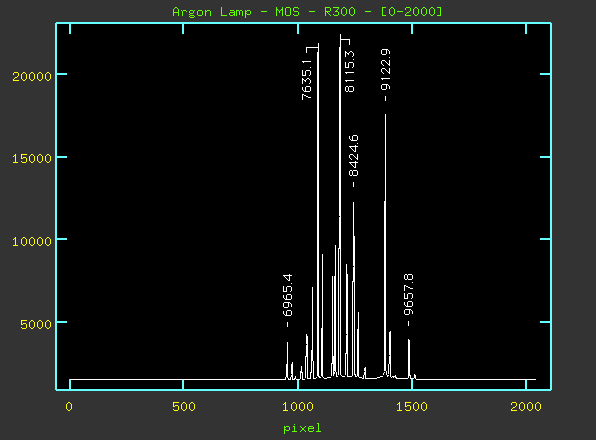

CUTS General Cut Cut Range [0-945] Cut Range [930-1530] Cut Range [1500-2000] Argon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism R300 Order Sorting Filter None Exposure Times Ar: 4s Average Dispersion 4.82 Å/pix

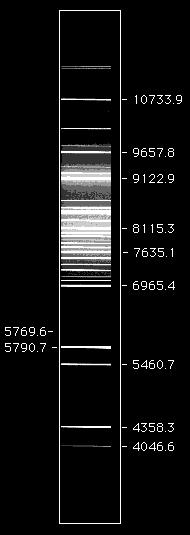

Mercury(Argon) Lamp

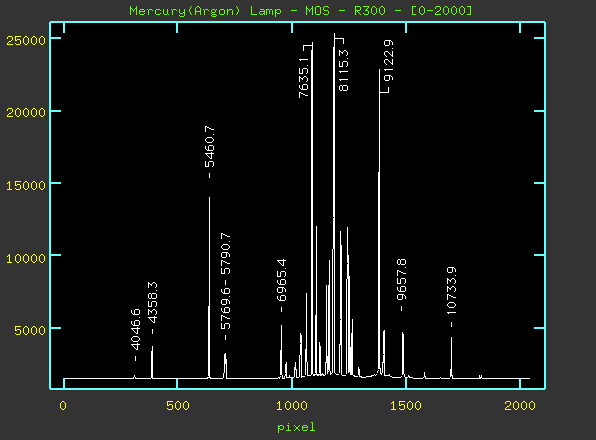

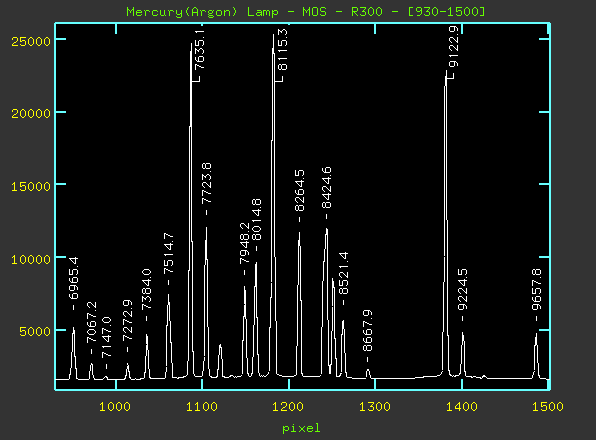

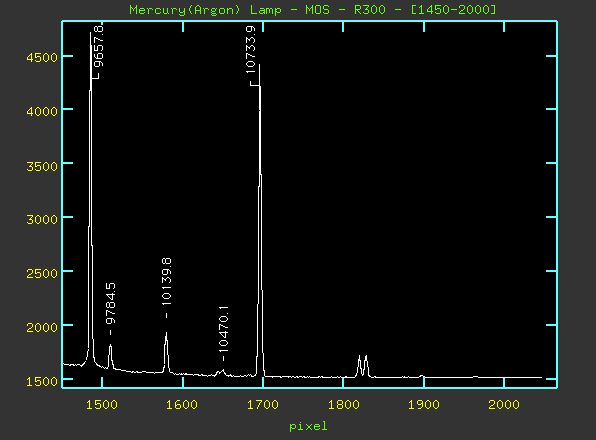

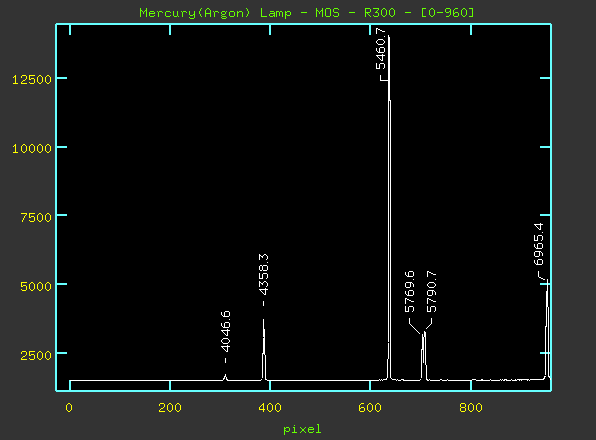

CUTS General Cut Cut Range [0-960] Cut Range [930-1500] Cut Range [1450-2000] Mercury(Argon) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism R300 Order Sorting Filter None Exposure Times Hg(Ar): 8s Average Dispersion 4.82 Å/pix

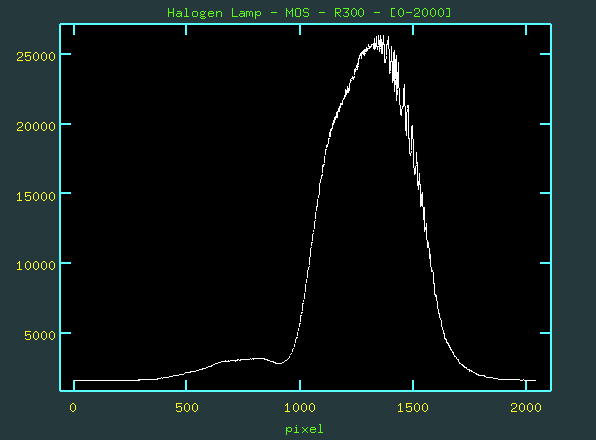

Halogen Lamp
