Grism V150 - MOS

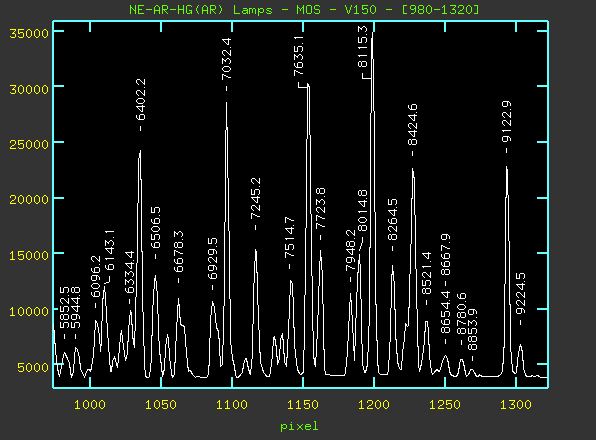

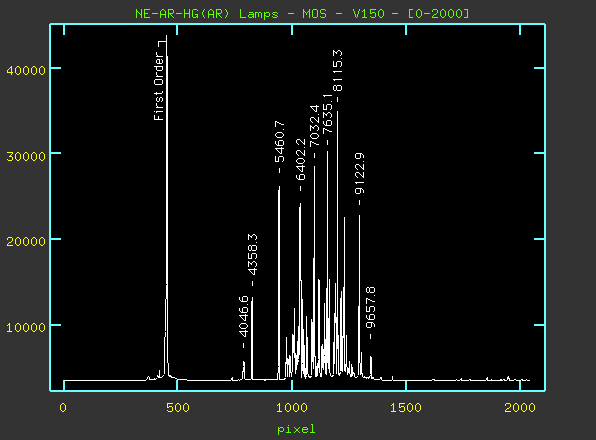

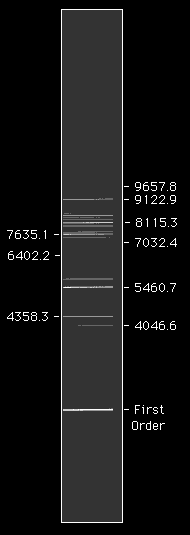

Neon-Argon-Mercury(Argon) Lamps

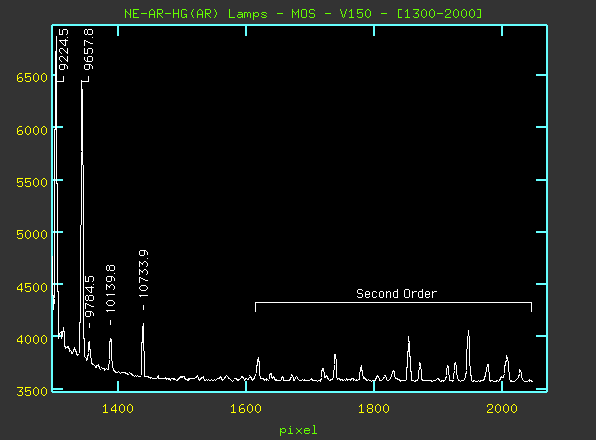

CUTS General Cut Cut Range [0-1000] Cut Range [980-1320] Cut Range [1300-2000] NeArHg(Ar) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism V150 Order Sorting Filter None Exposure Times Ne: 2s, Ar: 2s, Hg(Ar): 4s Average Dispersion 10.80 Å/pix

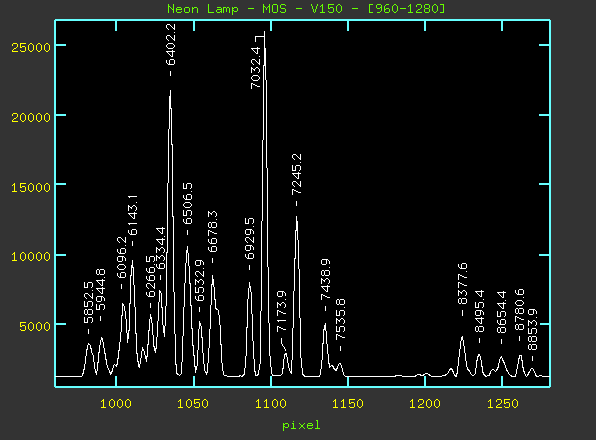

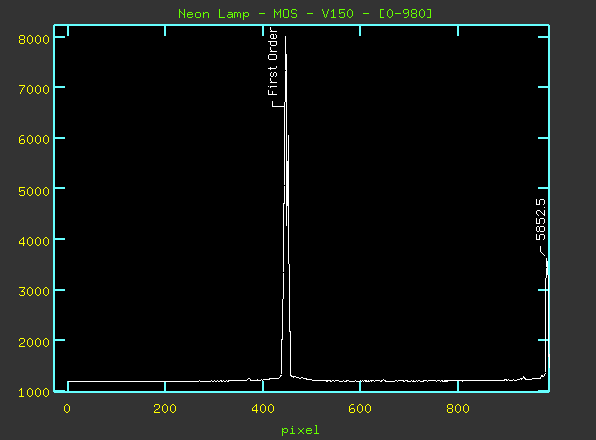

Neon Lamp

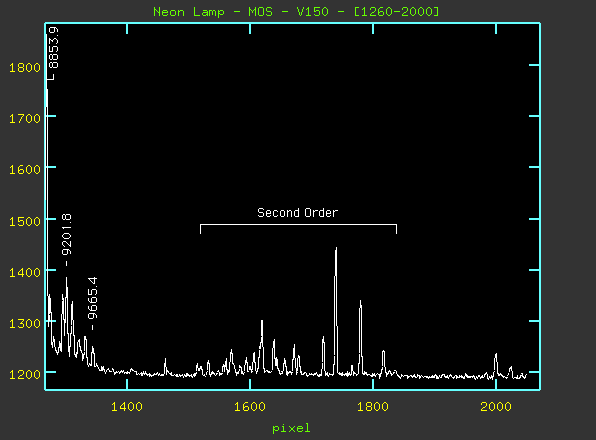

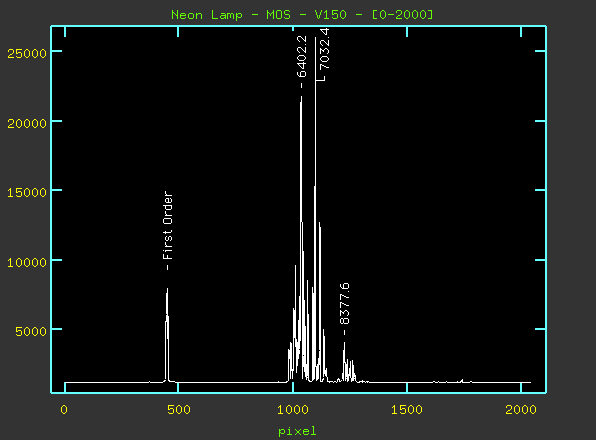

CUTS General Cut Cut Range [0-980] Cut Range [960-1280] Cut Range [1260-2000] Neon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism V150 Order Sorting Filter None Exposure Times Ne: 2s Average Dispersion 10.80 Å/pix

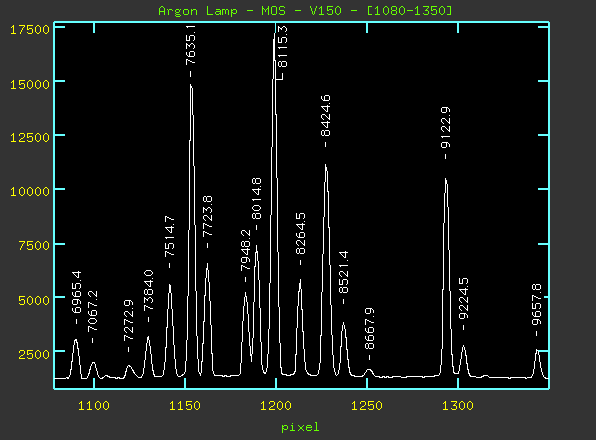

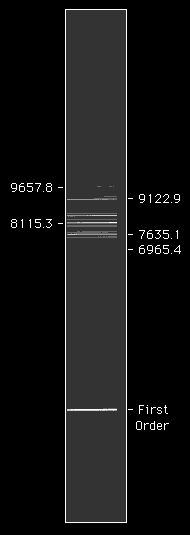

Argon Lamp

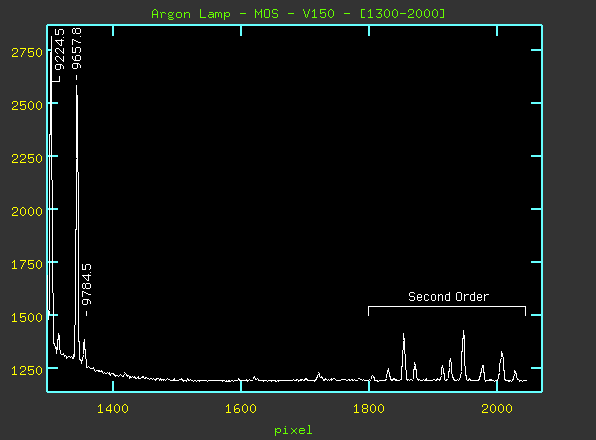

CUTS General Cut Cut Range [0-1100] Cut Range [1080-1350] Cut Range [1300-2000] Argon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism V150 Order Sorting Filter None Exposure Times Ar: 2s Average Dispersion 10.80 Å/pix

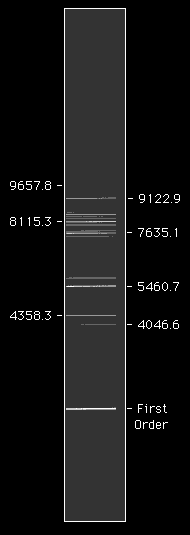

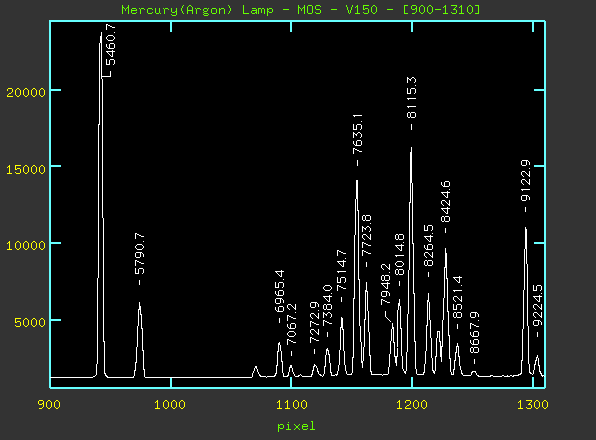

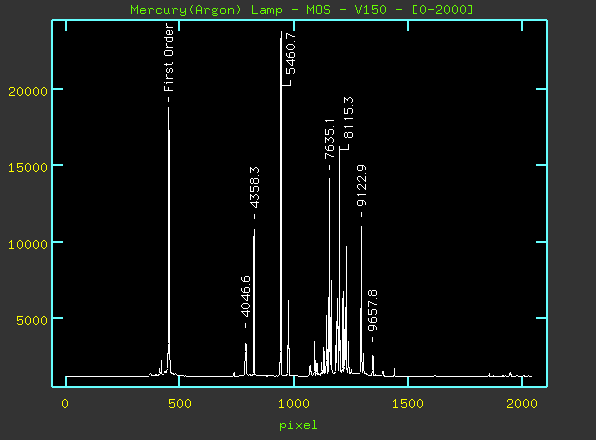

Mercury(Argon) Lamp

CUTS General Cut Cut Range [0-1000] Cut Range [900-1310] Cut Range [1300-2000] Mercury(Argon) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism V150 Order Sorting Filter None Exposure Times Hg(Ar): 4s Average Dispersion 10.80 Å/pix

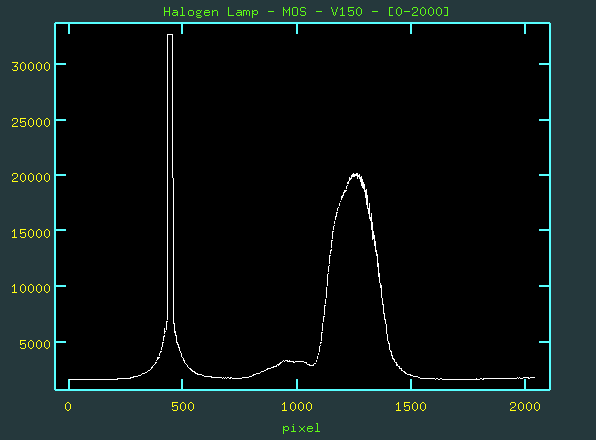

Halogen Lamp
