CFHT CCD EEV2 Photon Transfer Curve

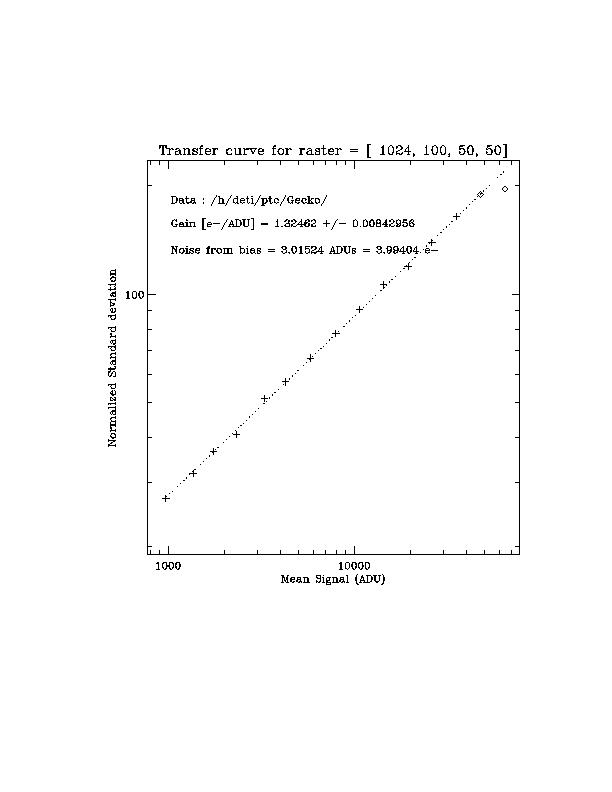

Photon transfer curve plot for EEV2 showing the small gain variations over the full range of the A/D converter. Note: The gain given in the previous table is an average of the photon transfer gain (1.325) and the gains from the Iron-55 ("X-Ray test") alpha and beta emissions (1.347 and 1.344).
