SIS Interference Filters (Note: 50.8mm square filters require an adaptor and will cause vignetting)

HTML version created by David Bohlender.

Maintained by Greg Barrick

Send comments to barrick@cfht.hawaii.edu.

If available, transmission curves can be viewed by clicking on the appropriate filter number. ASCII data is now available by clicking on data.

Set	Filter Number and ASCII Data	Central Wavelength (Å)	Bandwidth (Å)	Max. Trans. (%)	Size (mm)	Shape	Thickness (mm)	For Use With...	Location	Comments	Status	Date Received
Corion	1101 data	10098	797	70	50.8	square	4.4	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1983
Comet	1301 data	3660	82	17	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	(blue)	Good	11/1/1984
Comet	1302 data	3903	54	32	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	(CN)	Good	11/1/1984
General Purpose	1305 data	3730	106	44	50.8	square	6	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	10/1/1987
General Purpose	1308 data	3409	161	17	50.8	square	5.66	cf4 focam mos sis mosfp sisfp oasis	---	Loaned by OLF	Good	4/1/1989
U	1309 data	3531	765	80	50.8	square	5.15	cf4 focam mos sis mosfp sisfp oasis	---	UG2+CuSO4	Poor	3/1/1991
U	1310 data	3542	624	63	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	CuSO4+UG1	Bad	7/1/1995
U	1311 data	3541	628	64	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	CuSO4+UG1	Bad	7/1/1995
CuSO4	1312 data	4165	2592	92	50.8	square	4.95	cf4 focam mos sis mosfp sisfp oasis	Coude f/4	For Coude	Good	3/1/1996
CuSO4	1313 data	4267	2322	90	50.8	square	4.95	cf4 focam mos sis mosfp sisfp oasis	Coude f/4	For Coude	Good	4/1/1996
U	1314 data	3546	611	63	50.8	square	5.42	cf4 focam mos sis mosfp sisfp oasis	---	CuSO4+UG1	Good	11/1/1999
U	1315 data	3547	607	63	50.8	square	5.46	cf4 focam mos sis mosfp sisfp oasis	---	CuSO4+UG1	Bad	11/1/1999
U	1316 data	3610	605	63	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	CuSO4+UG1	Good	3/1/2001
Comet	1401 data	4071	76	41	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	(C3)	Good	11/1/1984
Comet	1402 data	4268	69	50	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	11/1/1984
Comet	1403 data	4853	65	59	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	(mid)	Good	11/1/1984
Mould B#2	1404 data	4468	1237	83	50.8	square	2.9	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	10/1/1981
General Purpose	1405 data	4466	853	83	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	approximately B	Good	12/1/1987
General Purpose	1406 data	4465	854	83	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	approximately B	Good	12/1/1987
Corion	1407 data	4061	597	65	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1983
Corion	1408	4517	560	66	50.8	square	3.5	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	10/1/1983
General Purpose	1409 data	4871	100	76	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	Parallel H beta	Good	10/1/1987
General Purpose	1410 data	4442	106	64	50.8	square	5.9	cf4 focam mos sis mosfp sisfp oasis	---	Tyson Bj	Good	1/1/1989
Geneal Purpose	1411 data	4556	100	67	50.8	square	5.9	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1989
Mould B#3	1412 data	4346	954	75	50.8	square	5.85	cf4 focam mos sis mosfp sisfp oasis	---	New BVRI Set	Poor	10/1/1989
Mould B#4	1413 data	4344	958	74	50.8	square	5.9	cf4 focam mos sis mosfp sisfp oasis	---	New BVRI Set	Poor	10/1/1989
General Purpose	1414 data	4381	1995	89	50.8	square	5.8	cf4 focam mos sis mosfp sisfp oasis	---	Tyson Bj	Good	6/1/1989
General Purpose	1415 data	4895	620	86	50.8	square	6	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	1/1/1991
Comet	1501 data	5148	100	64	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	(C2)	Good	11/1/1984
Mould V#1	1503 data	5490	996	79	50.8	square	3.05	cf4 focam mos sis mosfp sisfp oasis	---	---	Poor	10/1/1981
Mould V#3	1504 data	5445	907	90	50.8	square	5.25	cf4 focam mos sis mosfp sisfp oasis	---	New BVRI Set	Good	12/1/1987
Corion	1505 data	5071	567	69	50.8	square	3.85	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1983
Corion	1506 data	5599	538	60	50.8	square	3.3	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1983
General Purpose	1507 data	5015	100	73	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	12/1/1987
General Purpose	1508 data	5202	112	80	50.8	square	5.9	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1989
General Purpose	1509 data	5355	111	82	50.8	square	5.9	cf4 focam mos sis mosfp sisfp oasis	---	Astigmatic	Poor	1/1/1989
Mould V#4	1510 data	5465	862	94	50.8	square	4.8	cf4 focam mos sis mosfp sisfp oasis	---	New BVRI Set	Good	2/1/1991
General Purpose	1511 data	5029	29	81	50.8	square	5.8	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	12/1/1990
General Purpose	1512 data	5034	750	64	50.8	square	6	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	3/1/1991
General Purpose	1513 data	5949	734	64	50.8	square	5.9	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	3/1/1991
General Purpose	1514 data	5349	485	87	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	6/1/1991
General Purpose	1515 data	5492	503	88	50.8	square	5.8	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	3/1/1991
General Purpose	1516 data	5930	32	70	50.8	square	4.6	cf4 focam mos sis mosfp sisfp oasis	---	Blotchy	Bad	---
General Purpose	1517 data	6060	2659	89	50.8	square	4	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	---
General Purpose	1518 data	5471	99	56	50.8	square	5.3	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	---
General Purpose	1519 data	5906	616	89	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	Fringes	Poor	2/1/1993
General Purpose	1520 data	5164	454	83	50.8	square	5.98	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	4/1/1995
General Purpose	1521 data	5923	564	91	50.8	square	5.4	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	6/15/1999
Comet	1601 data	6845	88	73	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	(red)	Good	11/1/1984
Mould R#1	1603 data	6498	1256	89	50.8	square	2.9	cf4 focam mos sis mosfp sisfp oasis	---	Astigmatic	Poor	10/1/1981
General Purpose	1604 data	6463	881	93	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	Astigmatic	Poor	7/1/1988
Corion	1605 data	6108	645	69	50.8	square	4.25	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1983
Corion	1606 data	6550	794	63	50.8	square	3.9	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1983
General Purpose	1607 data	6184	93	79	50.8	square	5.2	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	5/1/1987
General Purpose	1608 data	6564	101	91	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Poor	12/1/1987
General Purpose	1609 data	6564	100	91	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Poor	12/1/1987
Mould R#3	1611 data	6497	1279	92	50.8	square	5.2	cf4 focam mos sis mosfp sisfp oasis	---	New BVRI Set	Good	10/1/1989
Mould R#4	1612 data	6500	1281	93	50.8	square	5.15	cf4 focam mos sis mosfp sisfp oasis	---	New BVRI Set	Cracked corner	10/1/1989
General Purpose	1613 data	6420	72	71	50.8	square	5.6	cf4 focam mos sis mosfp sisfp oasis	---	F/8	Good	1/1/1989
General Purpose	1614 data	6670	18	85	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	F/8	Good	12/1/1990
General Purpose	1615 data	6608	37	83	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	F/8	Good	12/1/1990
General Purpose	1616 data	6591	112	85	50.8	square	5.8	cf4 focam mos sis mosfp sisfp oasis	---	F/8	Good	12/1/1990
General Purpose	1617 data	6494	600	86	50.8	square	5.8	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1991
General Purpose	1618 data	6305	28	60	50.8	square	6	cf4 focam mos sis mosfp sisfp oasis	---	F/8	Good	3/1/1991
General Purpose	1619 data	6750	780	61	50.8	square	6	cf4 focam mos sis mosfp sisfp oasis	---	F/8	Good	3/1/1991
General Purpose	1620 data	6734	48	61	50.8	square	6	cf4 focam mos sis mosfp sisfp oasis	---	F/8	Good	3/1/1991
General Purpose	1621 data	6763	525	90	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	6/1/1991
General Purpose	1622 data	5962	2346	93	50.8	square	5.8	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	6/1/1991
General Purpose	1623 data	6405	115	59	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	---
General Purpose	1624 data	6610	23	86	50.8	square	5.15	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1993
General Purpose	1625	6609	23	83	50.8	square	5.15	cf4 focam mos sis mosfp sisfp oasis	Gumball	Parallel	Good	1/1/1993
General Purpose	1626 data	6775	534	92	50.8	square	5.62	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	2/1/1993
General Purpose	1627 data	6578	9.4	72	50.8	square	6.05	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	good	1/1/1996
General Purpose	1628 data	6607	9.5	74	50.8	square	6.04	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	good	1/1/1996
General Purpose	1629 data	6590	9.3	73	50.8	square	6.01	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	good	1/1/1996
General Purpose	1630 data	6582	9.3	72	50.8	square	6.01	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	good	1/1/1996
General Purpose	1631 data	6596	9.5	75	50.8	square	6.04	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	good	1/1/1996
General Purpose	1632 data	6568	9	71	50.8	square	6.01	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	good	1/1/1996
General Purpose	1633 data	6570	48	86	50.8	square	6.04	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	good	1/1/1996
General Purpose	1634 data	6735	51	88	50.8	square	5.96	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	good	2/13/1996
Comet	1701 data	7037	215	81	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	(H2O)	0	11/1/1984
Corion	1702 data	7081	683	63	50.8	square	4.5	cf4 focam mos sis mosfp sisfp oasis	---	Astigmatic	Poor	1/1/1983
Corion	1703 data	7510	821	64	50.8	square	4.2	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1983
General Purpose	1704 data	7768	177	89	50.8	square	4.7	cf4 focam mos sis mosfp sisfp oasis	---	F/8 (TiO)	Good	8/1/1985
General Purpose	1705 data	7460	2467	83	50.8	square	6	cf4 focam mos sis mosfp sisfp oasis	---	F/8	Poor	1/1/1991
General Purpose	1706 data	7684	774	57	50.8	square	5.9	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	2/1/1991
General Purpose	1707 data	7138	60	72	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	F/8	Good	12/1/1990
General Purpose	1708 data	7542	2140	95	50.8	square	5.8	cf4 focam mos sis mosfp sisfp oasis	---	F/8	Good	6/1/1991
General Purpose	1709 data	7492	182	83	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	Loaned by OLF	Poor	---
General Purpose	1710 data	7229	100	80	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	Loaned by OLF	Good	---
General Purpose	1711 data	7341	709	88	50.8	square	5.99	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	4/1/1995
Mould I#1	1802 data	8377	2066	84	50.8	square	3.2	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	10/1/1981
General Purpose	1803 data	8340	873	93	50.8	square	4.7	cf4 focam mos sis mosfp sisfp oasis	---	approxamately I	Good	12/1/1987
Corion	1804 data	8063	698	59	50.8	square	3.85	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1983
Corion	1805 data	8559	732	66	50.8	square	3.75	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1983
Corion	1806 data	8934	412	58	50.8	square	3.75	cf4 focam mos sis mosfp sisfp oasis	---	Parallel	Good	1/1/1983
General Purpose	1807 data	8126	186	89	50.8	square	4.6	cf4 focam mos sis mosfp sisfp oasis	---	F/8 (CN)	Poor	8/1/1985
Mould I#1	1808 data	8340	1942	96	50.8	square	5.2	cf4 focam mos sis mosfp sisfp oasis	---	New BVRI Set	Good	10/1/1989
Mould I#4	1809 data	8335	1959	96	50.8	square	5.1	cf4 focam mos sis mosfp sisfp oasis	---	New BVRI Set	Good	10/1/1989
General Purpose	1810 data	8460	1767	95	50.8	square	5.8	cf4 focam mos sis mosfp sisfp oasis	---	Long Pass	Good	3/1/1991
General Purpose	1811 data	8235	87	85	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	---
General Purpose	1812 data	8499	104	50	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	---
General Purpose	1813	8250	350	---	50.8	square	5	cf4 focam mos sis mosfp sisfp oasis	---	---	Good	---
General Purpose	1814 data	8752	181	84	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	Loaned by OLF	Good	---
General Purpose	1815 data	8098	107	75	50.8	square	5.5	cf4 focam mos sis mosfp sisfp oasis	---	Loaned by OLF	Good	---
General Purpose	1816 data	8981	106	88	50.8	square	4.3	cf4 focam mos sis mosfp sisfp oasis	---	Loaned by OLF	Good	---
Corion	1901 data	9529	991	66	50.8	square	3.85	cf4 focam mos sis mosfp sisfp oasis	---	Some Astigmatism	Fair	1/1/1983
General Purpose	2501 data	5009	9.4	48	50.8	square	7	cf4 mos sis mosfp sisfp oasis	---	Mottled + Pinholes	Bad	---
General Purpose	2502 data	5218	32	70	50.8	square	7	cf4 mos sis mosfp sisfp oasis	---	---	Poor	---
General Purpose	2503 data	5462	2746	83	50.8	square	6.3	cf4 mos sis mosfp sisfp oasis	---	FR400IRblck	Good	3/1/1990
General Purpose	2504 data	5189	33	69	50.8	square	7	cf4 mos sis mosfp sisfp oasis	---	---	Good	---
General Purpose	2505 data	5461	1707	76	50.8	square	6.95	cf4 mos sis mosfp sisfp oasis	---	Very Astigmatic	Poor	---
General Purpose	2506 data	5025	40	80	50.8	square	6.15	cf4 mos sis mosfp sisfp oasis	---	Parallel	Poor	1/1/1993
General Purpose	2601 data	6502	38	68	50.8	square	7	cf4 mos sis mosfp sisfp oasis	---	---	Poor	---
General Purpose	2602 data	6562	46	82	50.8	square	7	cf4 mos sis mosfp sisfp oasis	---	F/8	Good	11/1/1984
General Purpose	2603 data	6628	55	67	50.8	square	7.2	cf4 mos sis mosfp sisfp oasis	---	F/8	Good	11/1/1984

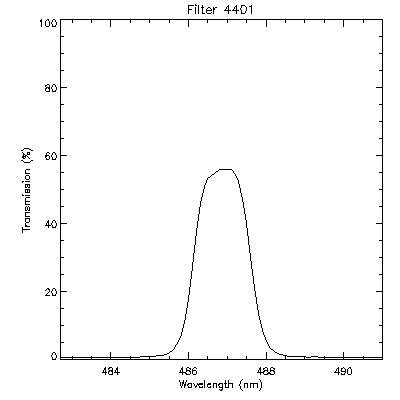

General Purpose	4401 data	4869	15	56	76.2	round	9.8	mos sis mosfp	---	F/8	Poor	1/1/1985

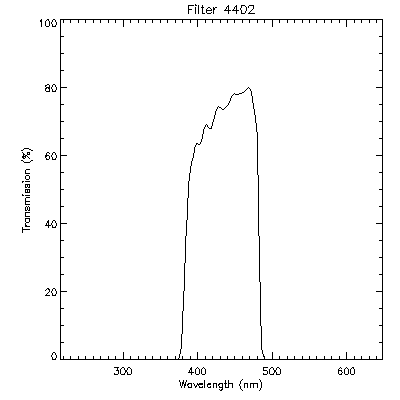

Mould B	4402 data	4337	970	80	76.2	round	4.6	mos sis mosfp	---	Barr Ass.	Good	3/1/1990

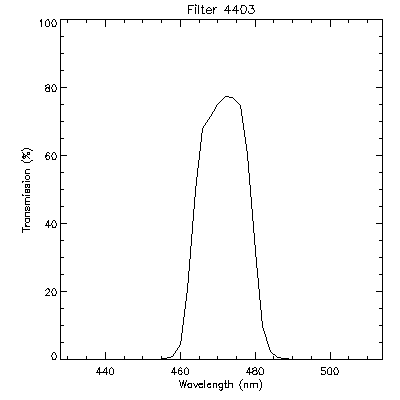

General Purpose	4403 data	4714	163	77	76.2	round	6.8	mos sis mosfp	---	Parallel	Good	9/1/1993
General Purpose	4404 data	4861	1028	90	76.2	round	6.4	mos sis mosfp	---	Parallel	Good	2/1/1994
General Purpose	4501 data	5015	14	68	76.2	round	9.8	mos sis mosfp	---	F/8	Poor	1/1/1985

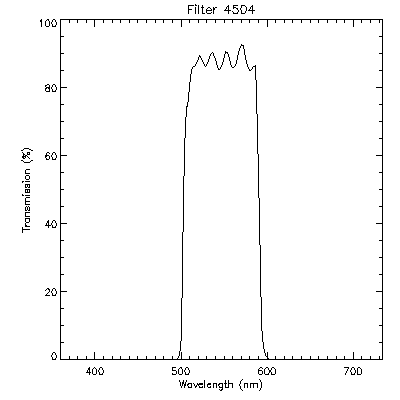

Mould V	4504 data	5468	876	92	76.2	round	6.4	mos sis mosfp	---	Barr Ass.	Good	3/1/1991

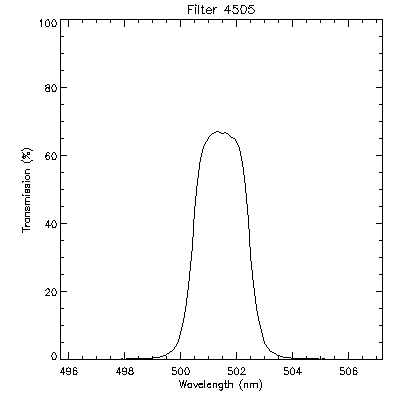

General Purpose	4505 data	5014	20.7	67	76.2	round	5.64	mos sis mosfp	---	F/8	Good	4/1/1998
General Purpose	4601 data	6571	10	67	76.2	round	9.4	mos sis mosfp	---	F/8	Good	1/1/1985
General Purpose	4602 data	6578	11	68	76.2	round	9.4	mos sis mosfp	---	F/8: Pinholes	Bad	1/1/1985

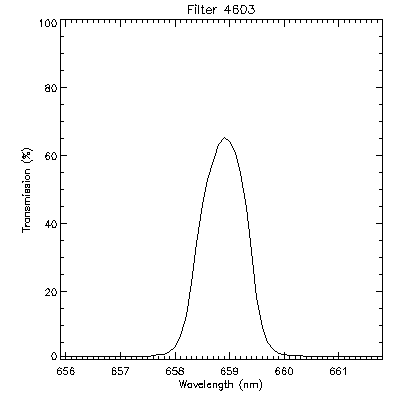

General Purpose	4603 data	6589	10	65	76.2	round	9.4	mos sis mosfp	---	F/8: Pinholes	Fair	1/1/1985
General Purpose	4604 data	6595	11	68	76.2	round	9.4	mos sis mosfp	---	F/8	Good	1/1/1985

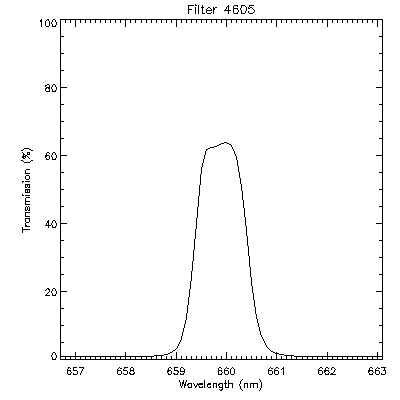

General Purpose	4605 data	6599	11	64	76.2	round	9.6	mos sis mosfp	---	F/8	Good	1/1/1985
General Purpose	4606 data	6603	11	69	76.2	round	9.6	mos sis mosfp	---	F/8	Bad	1/1/1985

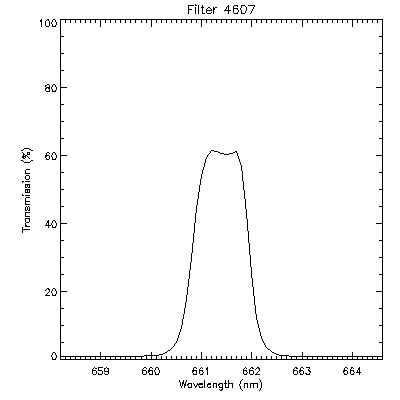

General Purpose	4607 data	6614	12	61	76.2	round	9.6	mos sis mosfp	---	F/8	Good	1/1/1985

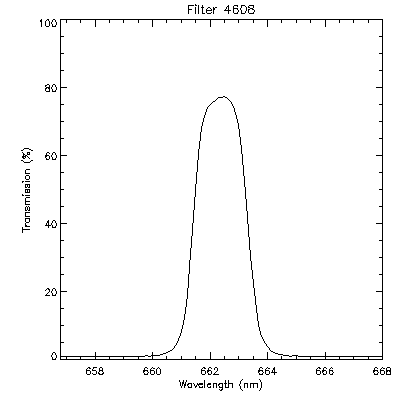

General Purpose	4608 data	6624	19	77	76.2	round	9.5	mos sis mosfp	---	F/8	Good	1/1/1985

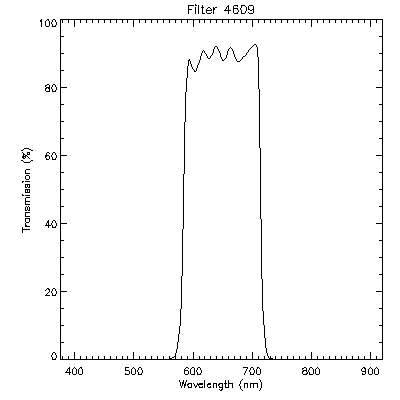

Mould R	4609 data	6493	1305	92	76.2	round	5.6	mos sis mosfp	---	Barr Ass.	Good	3/1/1990

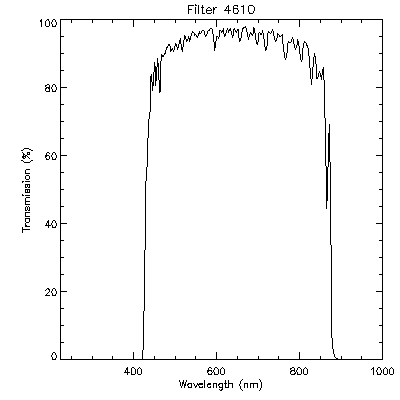

General Purpose	4610 data	6470	4349	98	76.2	round	5.9	mos sis mosfp	---	Barr Ass.	Good	---

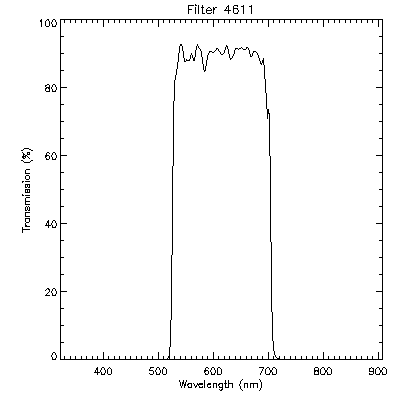

General Purpose	4611 data	6152	1779	93	76.2	round	5.9	mos sis mosfp	---	DAO Filter	Good	10/1/1993

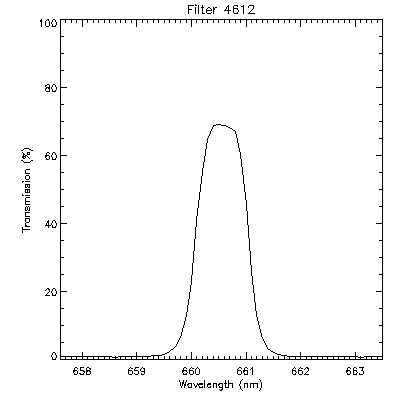

General Purpose	4612 data	6606	9.9	69	76.2	round	6.7	mos sis mosfp	---	Parallel	Good	12/1/1993

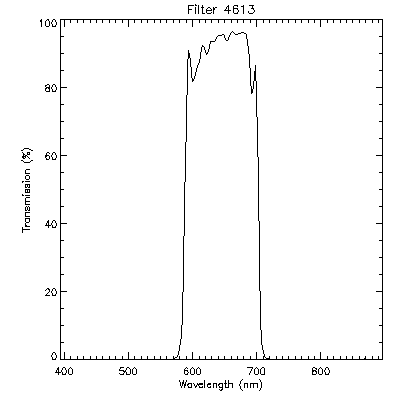

Mould R#2	4613 data	6453	1143	96	76.2	round	6.04	mos sis mosfp	---	Parallel	Good	1/1/1996

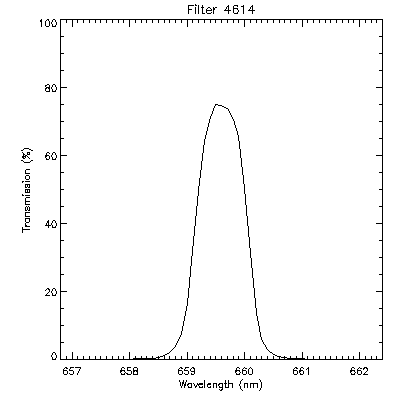

General Purpose	4614 data	6596	9.4	75	76.2	round	5.64	mos sis mosfp	---	F/8	Good	4/1/1998

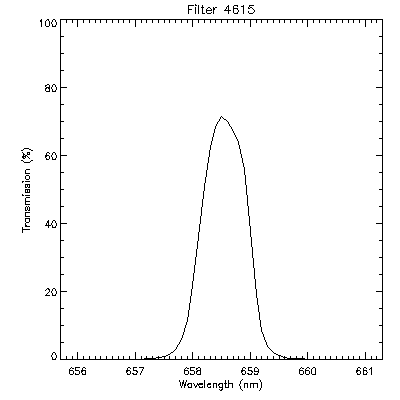

General Purpose	4615 data	6586	9.1	71	76.2	round	5.63	mos sis mosfp	---	F/8	Good	4/1/1998

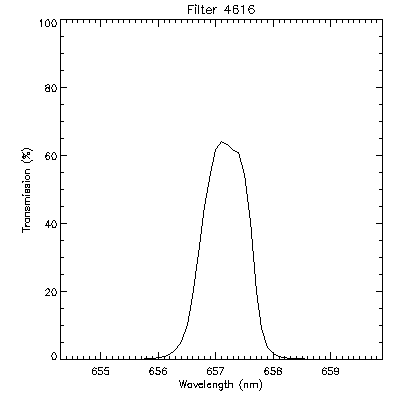

General Purpose	4616 data	6572	9.3	64	76.2	round	5.62	mos sis mosfp	---	F/8	Good	4/1/1998

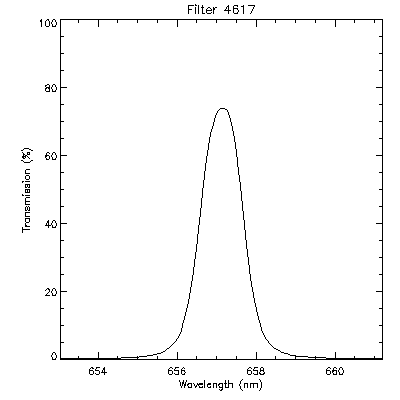

General Purpose	4617 data	6572	12	74	76.2	round	5.87	mos sis mosfp	---	---	Good	8/20/2001
General Purpose	4618 data	6719	55	87	76.2	round	5.88	mos sis mosfp	---	---	Good	8/20/2001

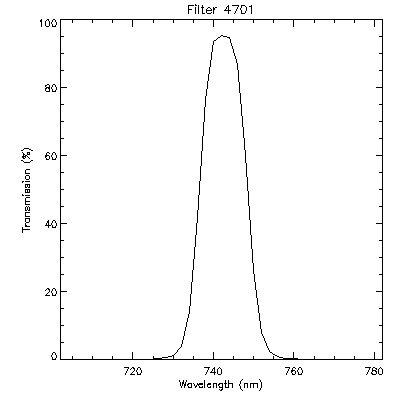

General Purpose	4701 data	7425	124	95	76.2	round	6.8	mos sis mosfp	---	Parallel	Good	2/1/1994

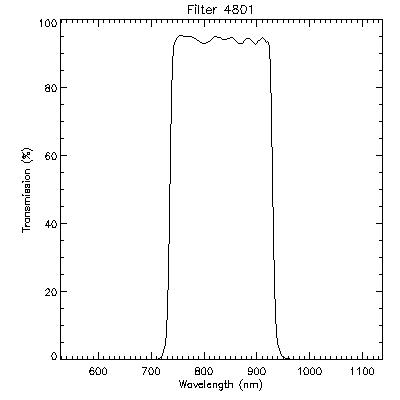

Mould I	4801 data	8326	1961	95	76.2	round	6	mos sis mosfp	---	Astigmatic	Poor	2/1/1991

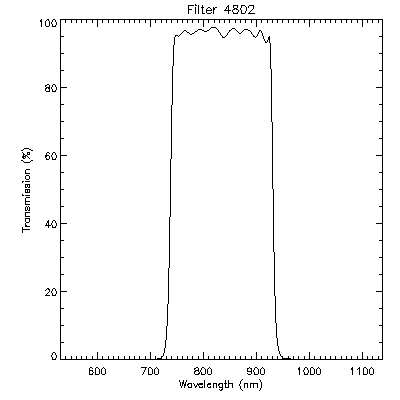

Mould I#2	4802 data	8344	1933	98	76.2	round	5.74	mos sis mosfp	---	Barr ass.	Good	8/1/1994

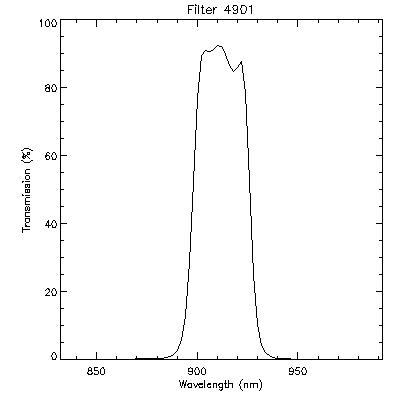

General Purpose	4901 data	9120	290	92	76.2	round	3.87	mos sis mosfp	---	Loan: D. Crampton	Good	7/31/1998

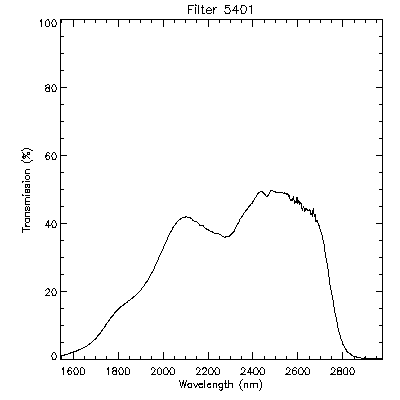

MR-0	5401 data	4540	780	93	25.4	round	5.96	oasis cfhtir	---	---	Good	11/2/1998
