12.7 mm Round Interference Filters

HTML version created by David Bohlender.

Maintained by Greg Barrick

Send comments to barrick@cfht.hawaii.edu.

If available, transmission curves can be viewed by clicking on the appropriate filter number. ASCII data is now available by clicking on data.

Set	Filter Number and ASCII Data	Central Wavelength (Å)	Bandwidth (Å)	Max. Trans. (%)	Size (mm)	Shape	Thickness (mm)	For Use With...	Location	Comments	Status	Date Received
Mould I	6001 data	8340	1940	82	12.7	round	5.8	kir	---	---	Good	11/1/1999
Mould I	6002 data	8340	1940	82	12.7	round	5.8	kir	---	---	Good	11/1/1999
J1-1	6101 data	12930	1390	61	12.7	round	4.96	kir	---	Loan: Coustenis	Good	1/1/1998
J1-2	6102 data	12930	1390	61	12.7	round	4.96	kir	---	Loan: Coustenis	Good	1/1/1998

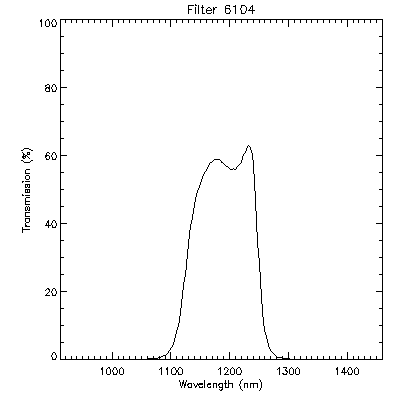

J2-1	6104 data	11810	1280	63	12.7	round	4.82	kir	---	Loan: Coustenis	Good	2/1/1998
J2-2	6105 data	11810	1280	63	12.7	round	4.82	kir	---	Loan: Coustenis	Good	2/1/1998
J2-3	6106 data	11810	1280	65	12.7	round	4.82	kir	---	Loan: Coustenis	Good	2/1/1998
Infrared J	6108 data	12450	1630	89	12.7	round	3.14	kir	---	OCLI L4Z-46	Good	4/1/1998
Infrared J	6109 data	12450	1630	90	12.7	round	3.14	kir	---	OCLI L4Z-31	Good	4/1/1998
J Continuum	6110 data	12070	150	60	12.7	round	4.94	kir	---	Barr	Good	6/15/1998
J Continuum	6111 data	12070	150	60	12.7	round	4.94	kir	---	Barr	Good	6/15/1998
Pa Gamma	6112 data	10940	110	70	12.7	round	4.95	kir	---	---	Good	4/12/1999
O II	6113 data	12370	120	71	12.7	round	4.94	kir	---	---	Good	4/12/1999

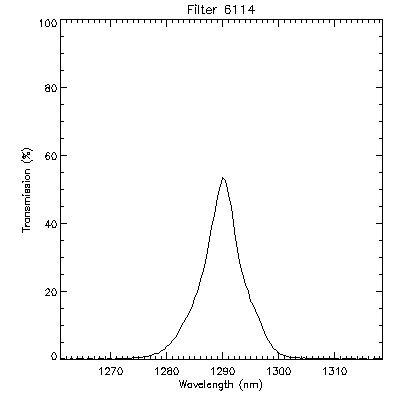

Paschen Beta	6114 data	12820	110	67	12.7	round	5.73	kir	---	---	Good	11/1/1999
Paschen Beta	6115 data	12820	110	67	12.7	round	5.67	kir	---	---	Good	11/1/1999
He I	6116 data	10830	90	86	12.7	round	5.74	kir	---	---	Good	11/1/1999
He I	6117 data	10830	90	86	12.7	round	5.72	kir	---	---	Good	11/1/1999

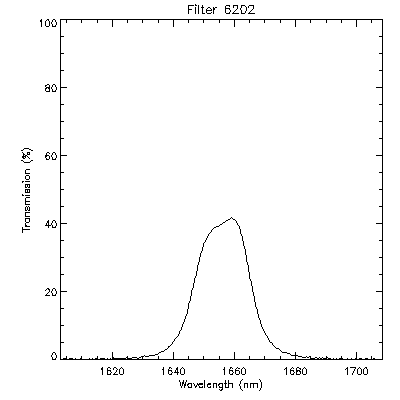

Fe II Z=0.01	6202 data	16590	200	42	12.7	round	1	kir	---	Loan Rouan	Good	---
H1-1	6203 data	16000	1600	54	12.7	round	1.04	kir	---	Loan: Coustenis	Good	11/1/1997
H1-2	6204 data	16000	1600	53	12.7	round	1.04	kir	---	Loan: Coustenis	Good	11/1/1997
H2-1	6205 data	16400	1000	60	12.7	round	1.04	kir	---	Loan: Coustenis	Good	11/1/1997
H2-2	6206 data	16400	1000	59	12.7	round	1.04	kir	---	Loan: Coustenis	Good	11/1/1997
Infrared 1.57	6207 data	15750	150	63	12.7	round	3.13	kir	---	Loan: Walker	Good	2/20/1998
Infrared H	6210 data	16320	2960	89	12.7	round	3.1	kir	---	OCLI L5-121	Good	5/1/1998
Infrared H	6211 data	16320	2960	89	12.7	round	3.1	kir	---	OCLI L5-121	Good	5/1/1998
Fe II	6212 data	16440	150	69	12.7	round	3.26	kir	---	Barr	Good	6/1/1998
FeII Continuum	6213 data	16900	180	70	12.7	round	3.18	kir	---	Barr	Good	6/15/1998

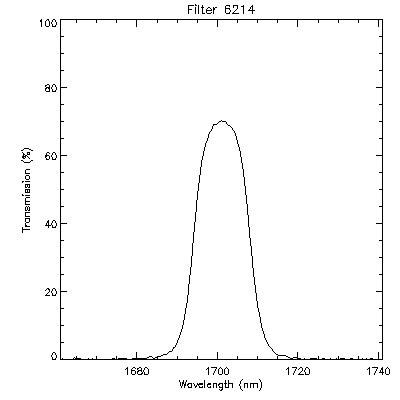

FeII Continuum	6214 data	16900	180	70	12.7	round	3.18	kir	---	Barr	Good	6/15/1998
H Continuum	6215 data	15700	200	68	12.7	round	3.18	kir	---	Barr	Good	6/15/1998
H Continuum	6216 data	15700	200	68	12.7	round	3.18	kir	---	Barr	Good	6/15/1998
General Purpose	6217 data	1964	255	43	12.7	round	0.96	kir	---	Loan Obs. Paris	Good	11/1/2000
H2 Z=0.01	6306 data	21430	300	54	12.7	round	1.56	kir	---	NOC Loan: Rouan 1	Good	---
Br-Gamma Z=0.01	6307 data	21830	300	54	12.7	round	1.56	kir	---	NOC Loan: Rouan 2	Good	---
Infrared K'	6308 data	21200	3400	96	12.7	round	3.09	kir	---	OCLI L6-15	Good	5/1/1998
Infrared K'	6309 data	21200	3400	96	12.7	round	3.1	kir	---	OCLI L6-28	Good	5/1/1998
H2 v=1-0 s(1)	6310 data	21220	200	64	12.7	round	3.2	kir	---	Barr	Good	6/1/1998
Br-Gamma	6311 data	21660	200	72	12.7	round	3.2	kir	---	Barr	Good	6/1/1998
H2 v=2-1 s(1)	6312 data	22480	200	68	12.7	round	3.2	kir	---	Barr	Good	6/1/1998
K Continuum	6313 data	22600	600	85	12.7	round	1.04	kir	---	Barr	Good	6/1/1998
CO (2-0 bh)	6314 data	22960	200	73	12.7	round	1.06	kir	---	Barr	Good	6/1/1998
Infrared K	6315 data	22000	3360	97	12.7	round	3.12	kir	---	OCLI L11-10	Good	7/1/1998
Infrared K	6316 data	22000	3360	96	12.7	round	3.12	kir	---	OCLI L11-10	Good	7/1/1998
General Purpose	6317 data	20300	210	56	12.7	round	4.82	kir	---	---	Good	11/1/1999

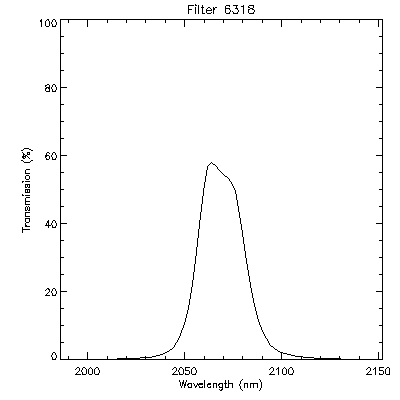

General Purpose	6318 data	20580	210	58	12.7	round	4.84	kir	---	---	Good	11/1/1999
General Purpose	6319 data	2085	301	46	12.7	round	1.07	kir	---	Loan Obs. Paris	Good	11/1/2000
General Purpose	6320 data	2167	267	39	12.7	round	1	kir	---	Loan Obs. Paris	Good	11/1/2000
General Purpose	6321 data	2395	310	39	12.7	round	1.05	kir	---	Loan Obs. Paris	Good	11/1/2000

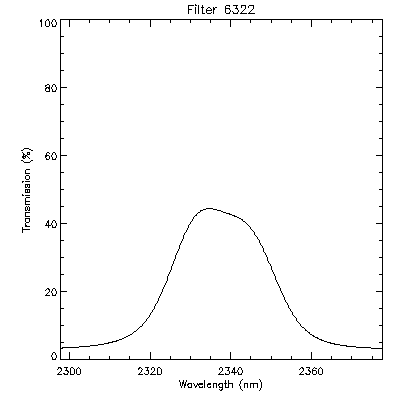

General Purpose	6322 data	2335	280	44	12.7	round	1.08	kir	---	Loan Obs. Paris	Good	11/1/2000
General Purpose	6323 data	2237	249	49	12.7	round	1.05	kir	---	Loan Obs. Paris	Good	11/1/2000
