UH8k Filters

The filters available for use with the UH8k are 6" square.  There are B, V, R and I filters available and two V&R filters (one of which is round and mounted in an adapter plate).  These filters were scanned in Waimea on 28 July 1997.  The resulting traces are shown below.

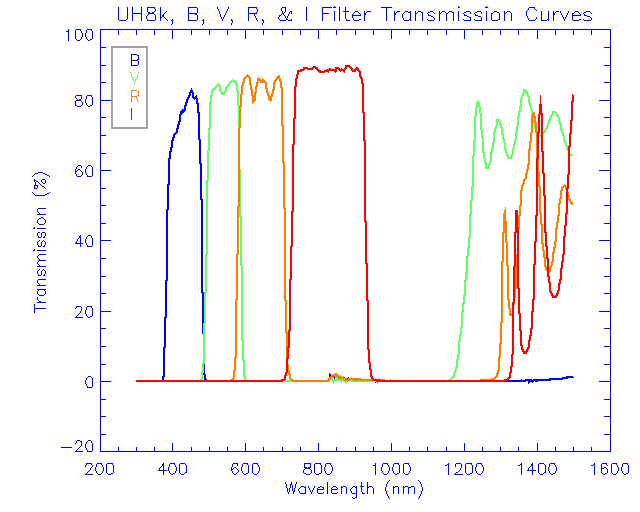

B, V, R, & I filter traces

The ASCII data files used to make the plots (columns are wavelength in nm and% transmission):
