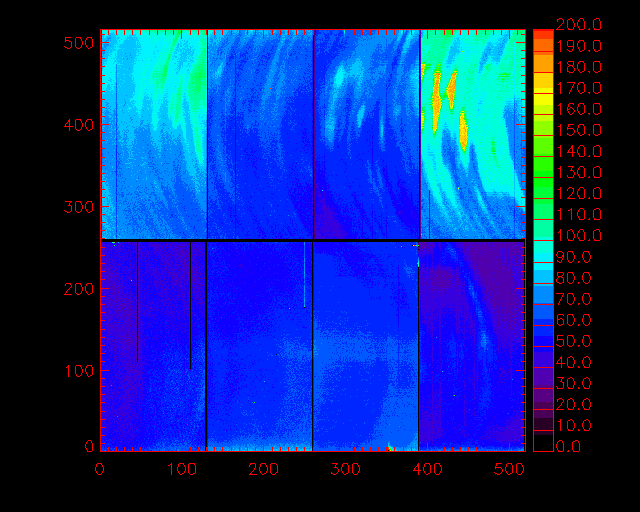

Above is a map of the dark current seen in the UH8k mosaic on 5th Dec 1996.
The units are electrons/pixel/20min, gain conversion was made using gain measurements made by Jean-Charles Cuillandre in Sept 1996 and corrected to the relative gains found in December 1996, assuming Chip 0 to have a gain of 2.2 electrons/ADU.
