Queued Service Observing with MegaPrime: Semester 2003B Report 02/29/04

A - Introduction

The Queued Service Observing (QSO) Project is part of a larger ensemble of software components defining the New Observing Process (NOP) which includes NEO (acquisition software), Elixir (data analysis) and DADS (data archiving and distribution). The semester 2003B was the second semester for which MegaPrime was used for the NOP system. It was a much better semester than the previous one although a lot of time was lost to technical problems, engineering, and mostly very adverse weather. The overheads with MegaPrime are also longer than with CFH12K so we are not as efficient on the sky as we were in the past. The semester 2003B was really where we learned how to deal with additional issues introduced by having a large program with very restrictive constraints like the CFHTLS. CFHTLS represents about 50% of all the time allocated for QSO observations, the other half being the regular PI programs with also their own constraints. As showed below, we were able to balance very well the time between all of the different Agencies (I most say quite an achievement with the terrible weather we've had!). However, the final share of observing time between the different components of the CFHTLS was not satisfying at the end. This is hardly surprising since the larger component of the LS has strong time constraints, which become even more dominant when the weather is unstable and bad on long periods of time. A full solution to this important problem, which will probably include a dynamic way of shifting priorities between programs, remains to be found.

B - General Comments

The semester started really well with a long run in September with good weather and MegaCam behaving quite well. However, it was during that run that we could start getting a better evaluation of our operational overheads, since for instance the guiding acquisition had improved a lot. The overheads are still much larger than we would like, mostly because of focus sequences and filter changes. Later during the semester, engineering for the auto-focus was done but this feature is not there yet. It appears that MegaPrime is more sensitive to temperature changes or position on the sky than CFH12K so focusing must be done more often than in the past. The introduction of frequent focus sequences (8-12) during a night add up to about 10% of overheads. It appears that MegaPrime is more sensitive to temperature changes or position on the sky than CFH12K was so focus must be done more often than in the past. Even if the queues are always prepared to diminish the global overheads, filter changes remain very costly. One filter change takes about 90 seconds longer than the readout of the mosaic. Depending on if we have to switch queues frequently or not, the number of standard stars observed, or how the PI requested the observations to be done, as much as 25 filter changes can take place during one night. Also, there are still some issues on the control software for the guiders and NOP which introduce additional time lost on the sky (now much less frequent). Our goal is to reduce the overheads as much as physically possible with the instrument. Auto-focus (expected to be available for the beginning of 2004) should help but filter changes will remain costly. A more quantitative description of the overheads is given below.

Starting in October, this is when difficulties arose with the instrument, coinciding with the arrival of bad and unstable weather. During that run, we started to experience a problem with CCD03 in the mosaic. The problem remained intermittent and affected all of the runs for the remaining of the semester. (Note: The faulty connector within the dewar has now been fixed). Since a failure of one of the chips was not totally unexpected and that we require that the PIs indicate in their Phase 2 what impact on their science such a failure could have, this was not too difficult to deal with, despite of course for the lost of 2.5% of data. We experienced also some time lost to weather (hurricane). At the end of the run, a major failure of the filter jukebox forced us to observe with only one filter for a given night. We do not count that as technical time lost but this is obviously not ideal for queue observing....

The last three runs of the semester were very severely affected by bad weather. For instance, 65% of the run in November was lost and about 50% of the run in Janaury. Moreover, another failure of the filter jukebox resulted in some time lost as well. As detailed below, the global fraction of time lost to weather and technical problems for 2003B is very high, in fact a factor of 2 higher than what we could expect. Thus the final statistics for 2003B are way lower than we would like. This is discussed in the section C below.

Some general remarks on QSO in general for the semester 2003B:

1. Technically, the entire chain of operation, QSO --> NEO --> TCS, is efficient and robust. The time lost to the NOP chain is very small. This is a complex system and we have worked real hard to reduce the overheads on this. Glitches appear from time to time, mostly on the guide star acquisition, but the system is now quite reliable and efficient.

2. The QSO concept is sound. With the possibility of preparing several queues covering a wide range of possible sky conditions in advance of an observing night, a very large fraction of the observations were done within the specifications. The ensemble of QSO tools allows also the quick preparation of queues during an observing night for adaptation to variable conditions, or in case of unexpected overheads. The introduction of the CFHTLS with time constrained observations on the large-scale adds significant complexity to queue scheduling and requires much more work on planning of the run. For 2003B, however, the global validation rate (validated/observed) was lower than usual. A discussion on this is included in section C.

3. QSO is well-adapted for time-constrained programs. The Phase 2 Tool allows the PIs to specify time constraints. Two of the components of the CFHTLS have very restrictive time constraints. We can handle those easily if the weather is cooperative (of course!) although the introduction of time constrained observations on a large-scale adds up definitive complexity in the scheduling process.

4. Very variable seeing and non-photometric nights represent the worse sky conditions for the QSO mode. In 2003B, we were short on "shapshot" programs or regular programs requesting mediocre conditions. As a result, we were often forced to observe programs in conditions worse than requested because the weather was very unstable. Again, we were able to calibrate all the fields requesting photometry but originally done during non-photometric conditions. The availability of Skyprobe and real-time measurements of the transparency is extremely valuable and regularly used do decide what observations should be undertaken.

5. Observations of moving targets is feasible in a queue mode. During the 2003A semester, we implemented a way of preparing observations for moving targets in our Phase 2 Tool (ephemeris tables). The process is a bit laborious but works really well and several programs have used this option for 2003B as well. Non-sidereal guiding is not yet offered.

C - Global Statistics, Program Completeness, and Overheads

1) Global Statistics

The following table presents some general numbers regarding the queue observations for 2003B (C, F, H, K, L, and T, D-time, excluding snapshot programs):

Remarks:

• The fraction of time lost during QSO nights in 2003B due to weather is much larger than the global fraction usually lost for Mauna Kea. Periods of bad seeing were also very frequent and, worse of all, most of the time lost happened at the end of the semester, when the system had become more efficient and the pressure from the science programs was higher... In fact, the number given above might be a bit underestimated since we had to observe for several nights with winds close to the acceptable limit which introduced bad windshake and degraded the image quality (see discussion below on validation rate).

• The time lost due to engineering and technical problems is, of course, very important this semester. The number given is also approximate because not everything could be taken into account (for instance, it is often difficult to untangle the time used to engineering during bad weather and count that as time lost for science). There is no doubt that we suffered greatly from several MegaPrime/MegaCam youth signs, in particular the filter jukebox which cannot sustain the number of filter changes requested during a run. We did not take into account the problem with CCD03 here although it introduced some difficulties in observing for certain programs.

• The global validation rate (validated/observed) is lower than usual at ~80%. Previous semesters had ~85% and more. There are several comments that can be made on this lower success for 2003B: 1) The validation rate does NOT take into account why the image was not validated. Most of the time, this is because the image quality has degraded or that absorption became too high and we kept trying and trying with hope of getting something useful. In other words, a large fraction of the 20% of images observed but not validated were in fact lost to weather, not to QSO procedure. For 2004A, we have implemented a new evaluation grade (5) in order to be able to distinguish the source of the non-validation. 2) The decrease in validation rate from previous semesters is worrisome and might reflect some lacking decision making from QSO. With the above remark and knowing that the weather was very unstable, maybe the decrease is only due to bad weather. We also know that the focus for MegaPrime for instance is sensitive to temperature and position on the sky so it happened often that the last exposure of an dithering pattern had an IQ going above the constraint required. The fact that bad weather was so global forced us also to observe high ranked programs in conditions a bit worse than required; we also did not have that many programs requesting bad seeing conditions in 2003B. Also, there was some lack of experience from our observers since some were new at the job. Hopefully, 2004A will be better on that side.

2) Program Completeness

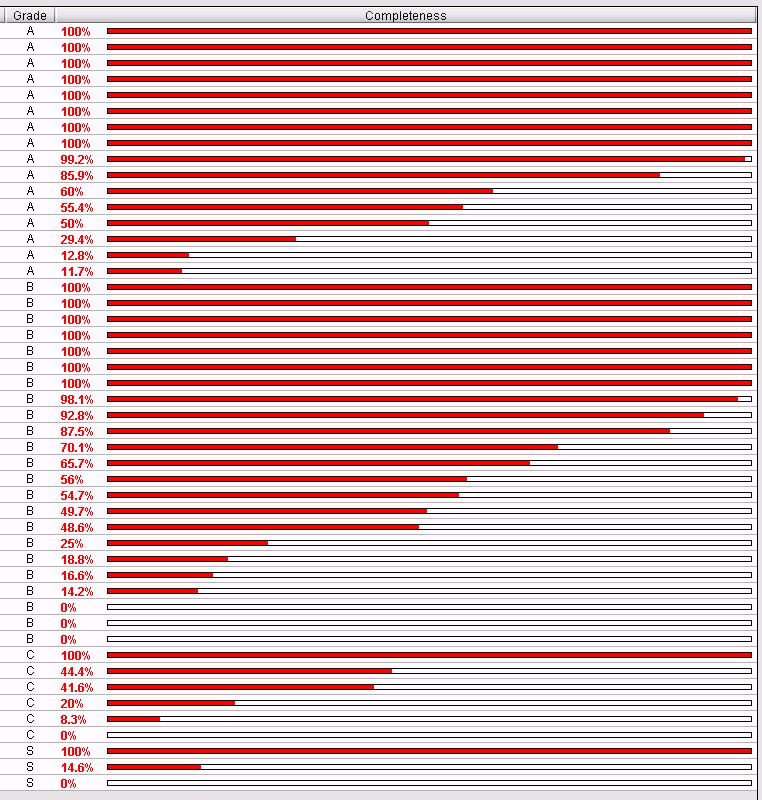

The figure below presents the completion level for all of the programs in 2003B, according to their grade:

Remarks:

• Even with a semester severely affected by bad weather and technical problems, the global completion level of the A programs is not that bad at around ~65%. It is important to note that the three A programs with the lowest completeness are in fact the same program spread over three Agencies; the PI refused until the last run to allow us to observe with the faulty CCD03 hence missing periods of very good seeing which is requested for those programs. Since this was a PI decision, the QSO completeness rate for the A programs is quite good!

• The completeness of B programs is much lower than usual. This is, of course, normal since B programs have a much lower priority than A programs and are then affected more by global bad weather. Still several B programs got a lot of data in 2003B!

3) Overheads

There is no doubt that the overheads with MegaPrime are more important than with CFH12K. The following table include the main operational overheads (that is, other than readout time of the mosaic) with MegaPrime during the semester 2003B. This is given as a reference; overheads are highly variable during a given night depending on the conditions, complexity of science programs, etc.

• Overheads to filter changes are large and consitute the main difference with CFH12K. The total time for a filter change is about 127 seconds but this is done in parallel during readout or while the telescope is moving (so, we do not always have an overhead for a filter change). The global overheads also depends strongly on the number of standard stars observed for a given night and also if switching from a queue to another is necessary (since overheads due to filter change are minimized within a specific queue). Until we have another system, this overhead will remain with us....

• Focus sequences are more frequent with MegaPrime because the camera seems to be more sensitive to position and temperature changes. The auto-focus feature is almost available and should contribute to significantly increase the time we spend observing instead of focusing...

• Overheads due to dome rotation are again minimized as much as possible within a specific queue. Note that a lot of rotation is necessary to reach standards stars on the equator when we observe northern targets. Hopefully, the use of the Deep survey fields from CFHTLS as secondary standards will help on this. Rotation of the dome is now optimized and cannot be made faster.

• Guide star acquisition is now fully automated and in general, works really well. Acquisition tends to take longer when the seeing is bad or cirus are present. Programs with frequent guide star acquisition with short exposure strategy (e.g. Very WIde survey in i band) increase the glbal overheads.

Note that overheads for calibrations (standard stars and Q98 short exposures for photometric purposes) are not included in this table. For 2003B, we observed about 3 standard star fields duing a photometric night (12 minutes / fields due to filter changes). For 2004A, we will observe only two standard fields.

D - Agency Time Accounting

1) Global Accounting

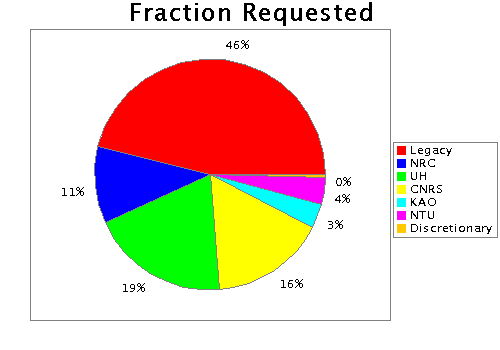

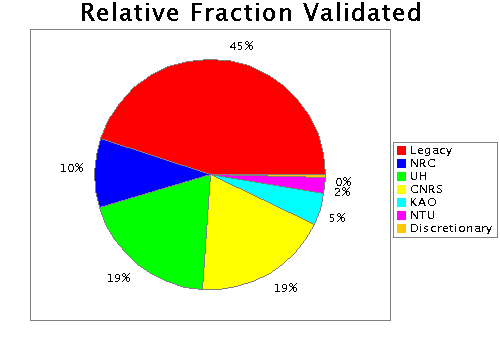

Balancing of the telescope time between the different Agencies is another constraint in the selection of the programs used to build the queues. The figure below presents the Agency time accounting for 2003B. The top panel presents the relative fraction requested by the different agencies, according to the total I-time allocated from the Phase 2 database. The bottom panel represents the relative fraction for the different Agencies, that is, [Total I-Time Validated for a given Agency]/[Total I-Time Validated]. As showed in the plots, the relative distribution of the total integration time of validated exposures between the different Agencies was balanced at the end of the 2003B.

Remarks:

• The global distribution is quite good considering the bad weather and time lost to technical issues for this semester. The French agency got a bit more than requested; this is because the constraints for their A programs for 2003B were quite reasonable (1", grey time) and easier to execute than their equivalent for some other agencies.

• The distribution between CFHTLS and the other Agencies is very good. Even with time critical observations, CFHTLS does not get more data than it should with respect to the other Agencies.

• We were not able to get enough data for the Taiwanese Agency this semester. Their unique program requested very good image quality (we contacted the PI but the IQ constraint remained) and could not be done with the failure of CCD03 until late in the semester.

2 ) CFHTLS Accounting

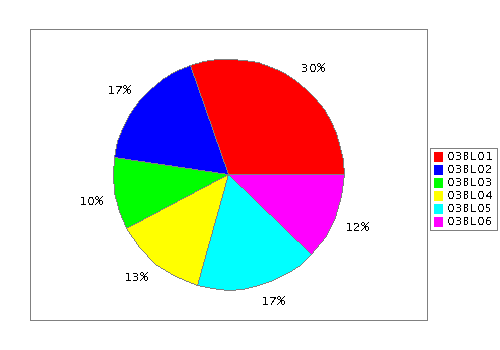

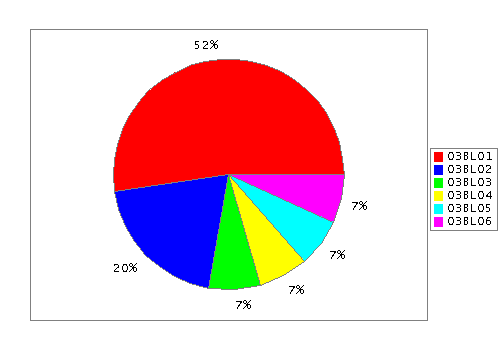

The following figures show the time accounting for the different CFHTLS components:

Since each component of the survey is divided into two programs, the global fractions are given in the following table:

• The distribution of time validated greatly favors the Deep Survey. This is essentially due to the time critical observations for the Supernova search. When weather is worse than expected, the time constraints become even more weightful with respect to the other programs, in particular compared to the Wide Survey since targets for both of these surveys are close on the sky. The IQ constraint also for the first and last nights of the run is also relaxed for the SNe program so that helped obtaining data while other CFHTLS programs could not be done. With that in mind, it is probably not realistic to propose to increase the time sampling of the supernovae search without compromising the other surveys. Finding a way to achieve a good balance between the different components of the CFHTLS remains a fundamental goal for the upcoming semester.

• Although smaller in terms of time allocated, the Very Wide survey has some strong time critical constraints too. In particular, a sequence of observations necessitates more than 3 consecutive hours of clear, decent seeing weather. This introduces an additional risk for QSO, even worse when the weather is unstable. This has contributed somewhat to a lower data rate for the Very Wide survey.

E - Conclusion

Our second semester with the queue mode with MegaPrime was better than 2003A but was a difficult one nonetheless, mostly due to the time lost to weather and technical problems. Even if the statistics are poor, we already have learned a great deal and a lot of progress was made in the semester, notably on some of the operational overheads. Improving efficiency remains a high priority, in particular by increasing the validation rate and implementing the auto-focus feature, and we are hopeful that 2004A will be more productive on the science side.
