Grism B600 - OSIS

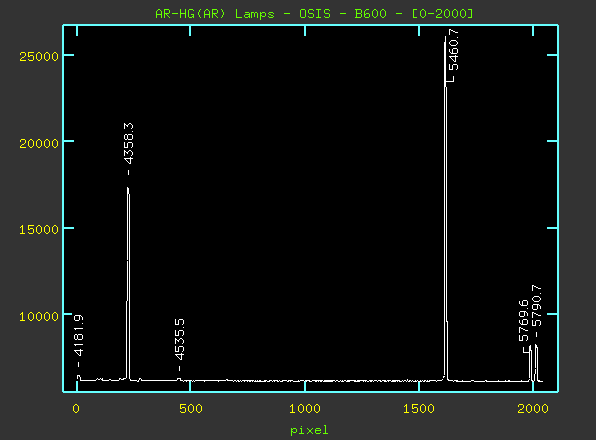

Argon-Mercury(Argon) Lamps

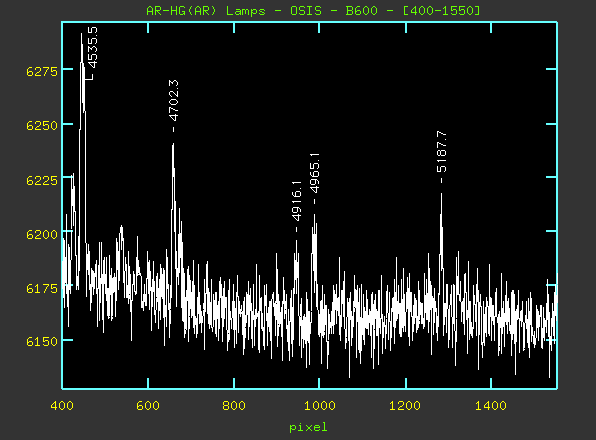

CUTS General Cut Cut Range [0-500] Cut Range [400-1550] Cut Range [1500-2000] NeArHg(Ar) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism B600 Order Sorting Filter None Exposure Times Ar: 1080s, Hg(Ar): 240s Average Dispersion .80 Å/pix

Argon Lamp

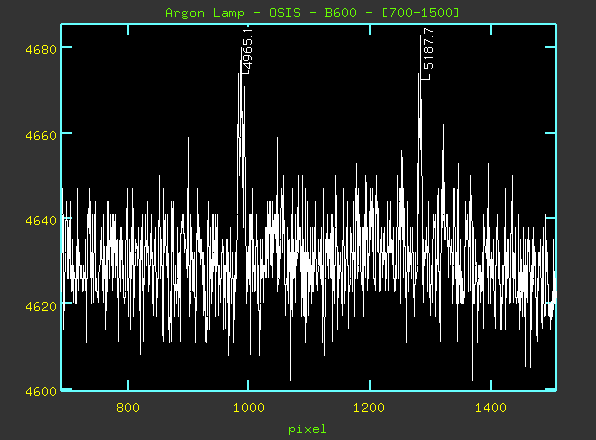

CUTS General Cut Cut Range [0-750] Cut Range [700-1500] Cut Range [1500-2000] Argon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism B600 Order Sorting Filter None Exposure Times Ar: 1080s Average Dispersion .80 Å/pix

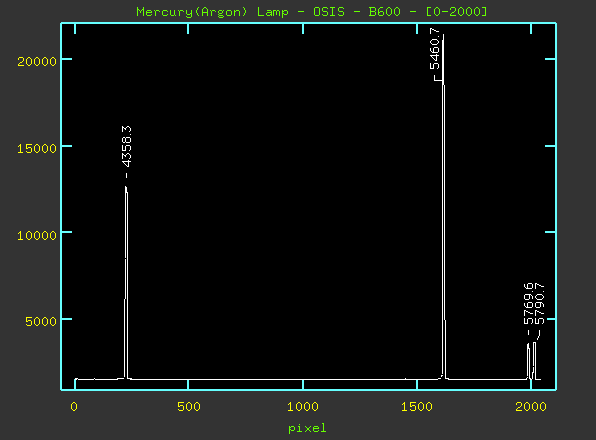

Mercury(Argon) Lamp

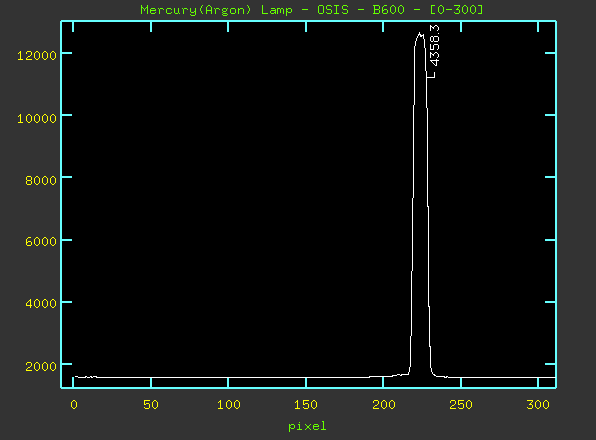

CUTS General Cut Cut Range [0-300] Cut Range [250-1550] Cut Range [1500-2000] Mercury(Argon) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1.5" Detector STIS 2 Grism B600 Order Sorting Filter None Exposure Times Hg(Ar): 240s Average Dispersion .80 Å/pix

Halogen Lamp
