Grism R150 - OSIS

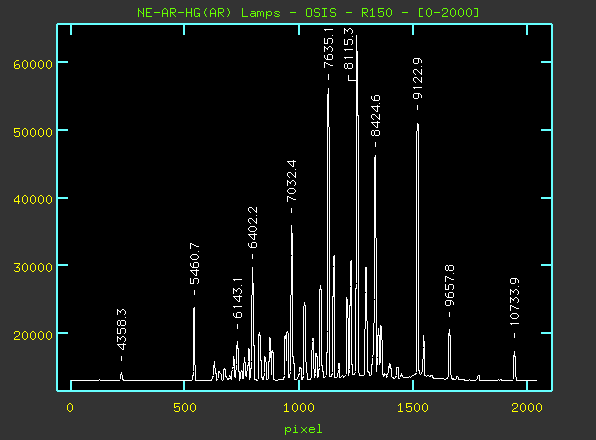

Neon-Argon-Mercury(Argon) Lamps

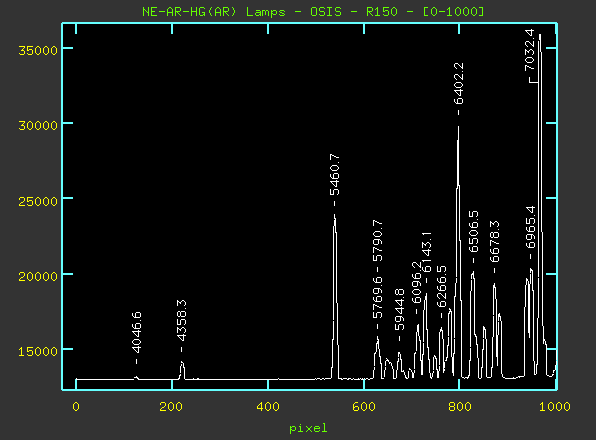

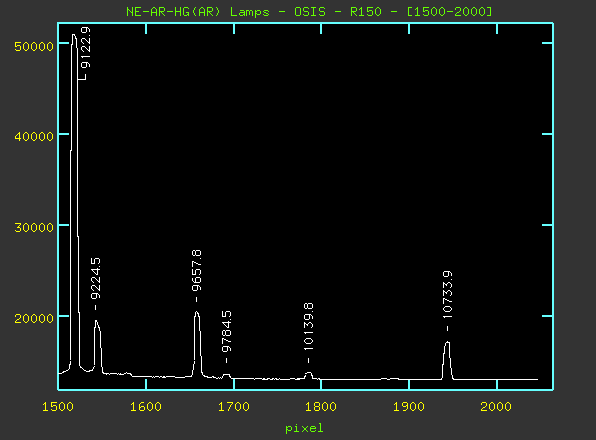

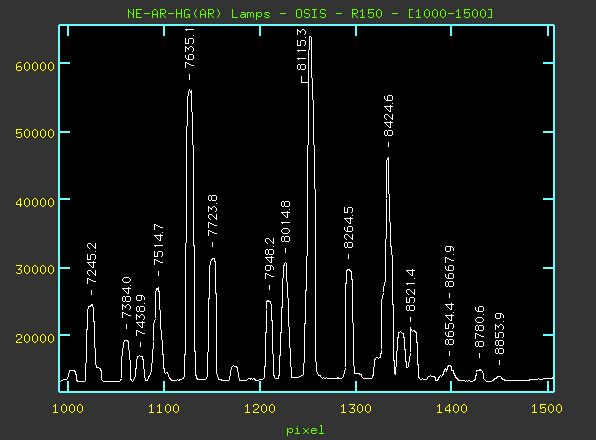

CUTS General Cut Cut Range [0-1000] Cut Range [1000-1500] Cut Range [1500-2000] NeArHg(Ar) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism R150 Order Sorting Filter None Exposure Times Ne: 20s, 2x Ar: 12s, 2x Hg(Ar): 24s Average Dispersion 4.01 Å/pix

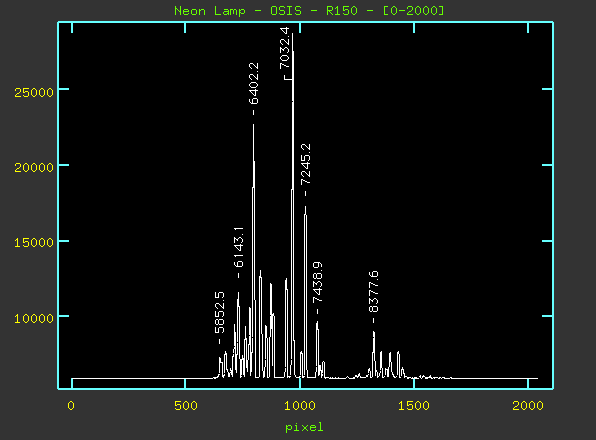

Neon Lamp

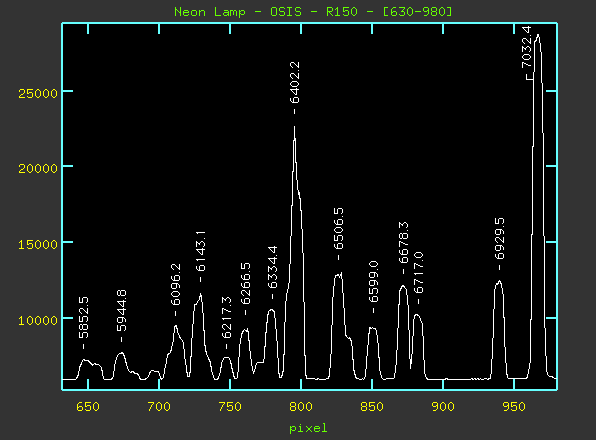

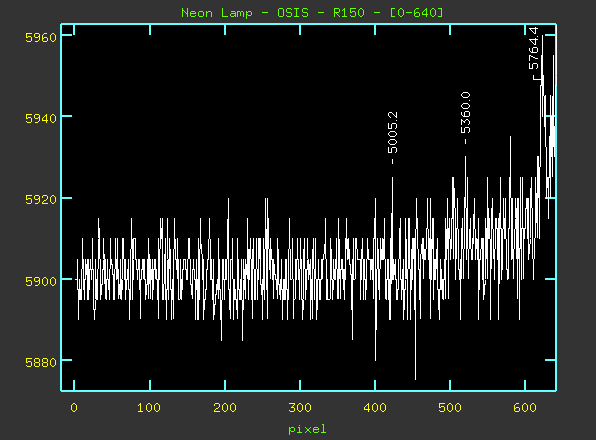

CUTS General Cut Cut Range [0-640] Cut Range [630-980] Cut Range [980-2000] Neon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism R150 Order Sorting Filter None Exposure Times Ne: 20s Average Dispersion 4.01 Å/pix

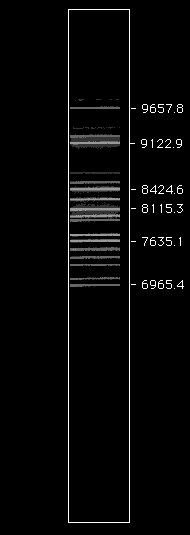

Argon Lamps

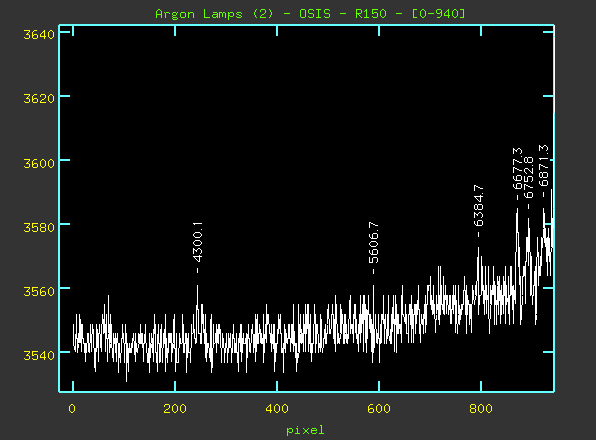

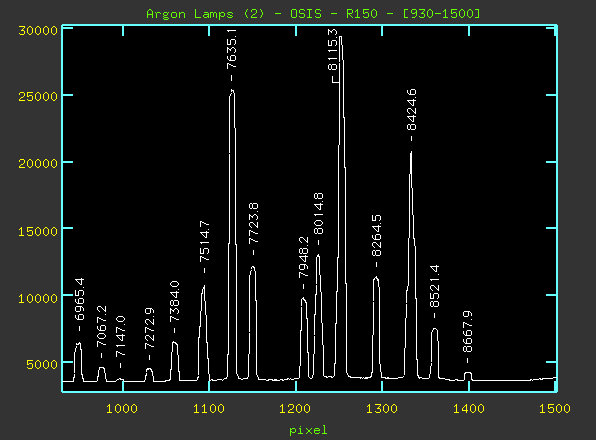

CUTS General Cut Cut Range [0-940] Cut Range [930-1500] Cut Range [1480-2000] Argon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism R150 Order Sorting Filter None Exposure Times 2x Ar: 12s Average Dispersion 4.01 Å/pix

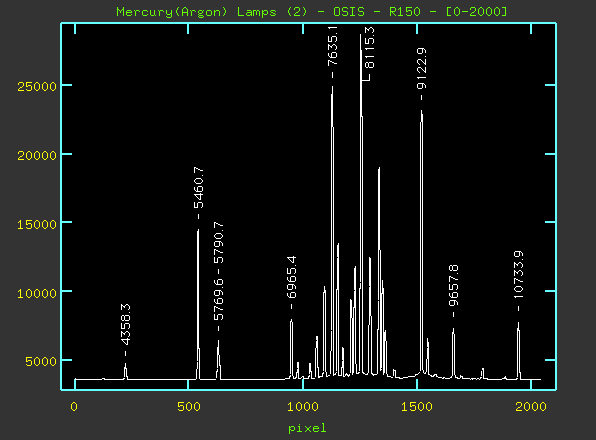

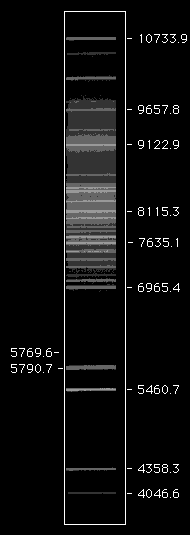

Mercury(Argon) Lamps

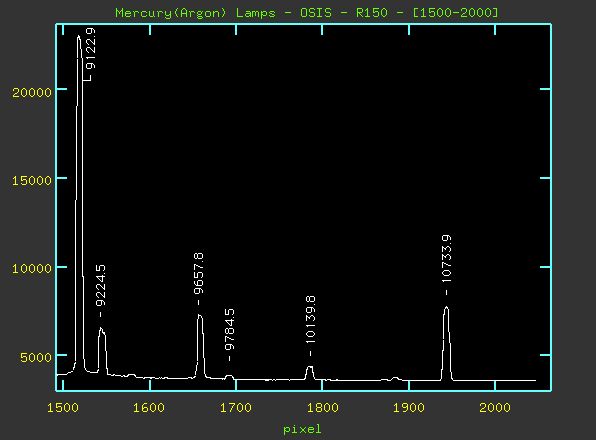

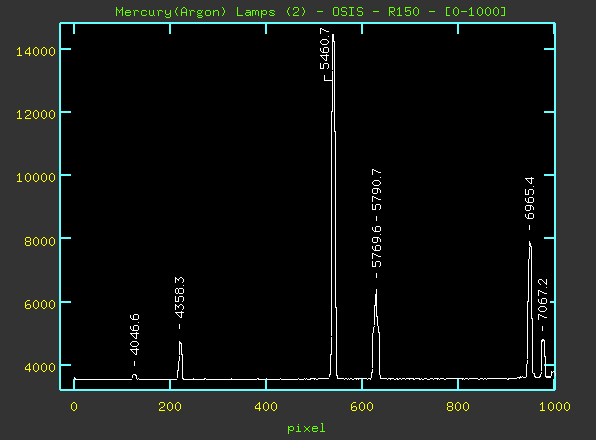

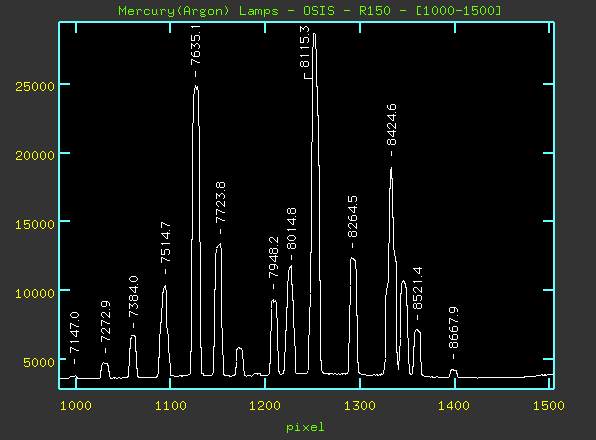

CUTS General Cut Cut Range [0-1000] Cut Range [1000-1500] Cut Range [1500-2000] Mercury(Argon) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism R150 Order Sorting Filter None Exposure Times 2x Hg(Ar): 24s Average Dispersion 4.01 Å/pix

Halogen Lamp
