Grism V150 - OSIS

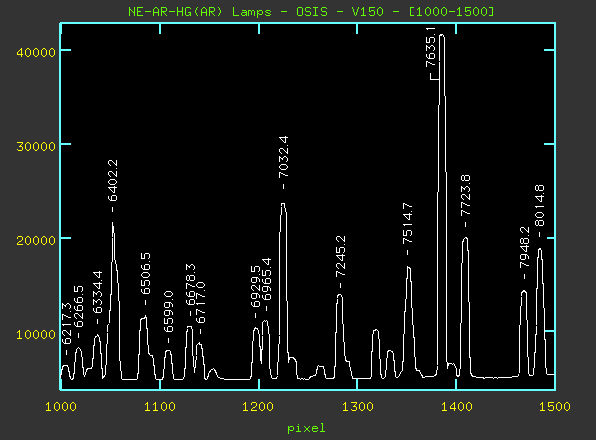

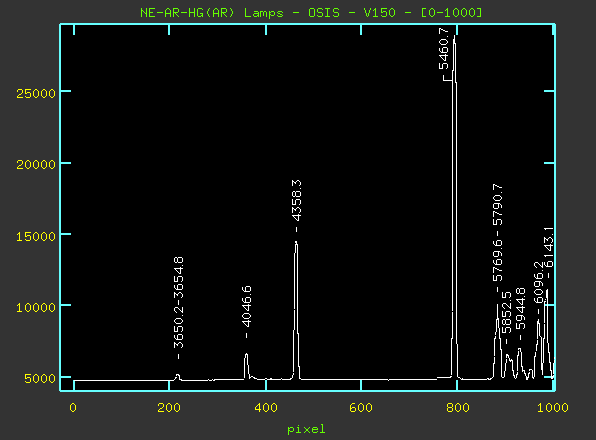

Neon-Argon-Mercury(Argon) Lamps

CUTS General Cut Cut Range [0-1000] Cut Range [1000-1500] Cut Range [1500-2000] NeArHg(Ar) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism V150 Order Sorting Filter None Exposure Times Ne: 32s, 2x Ar: 16s, 2x Hg(Ar): 32s Average Dispersion 3.60 Å/pix

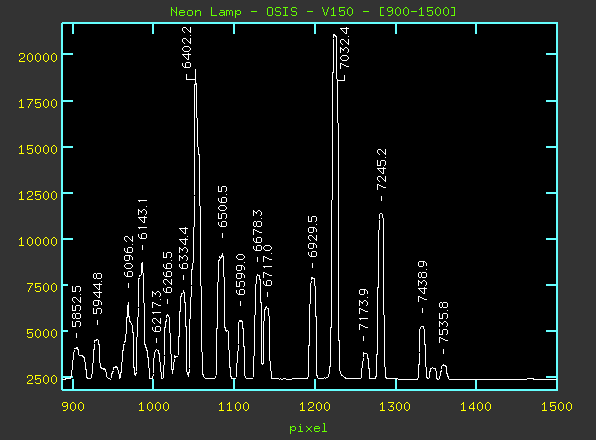

Neon Lamp

CUTS General Cut Cut Range [0-900] Cut Range [900-1500] Cut Range [1480-2000] Neon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism V150 Order Sorting Filter None Exposure Times Ne: 32s Average Dispersion 3.60 Å/pix

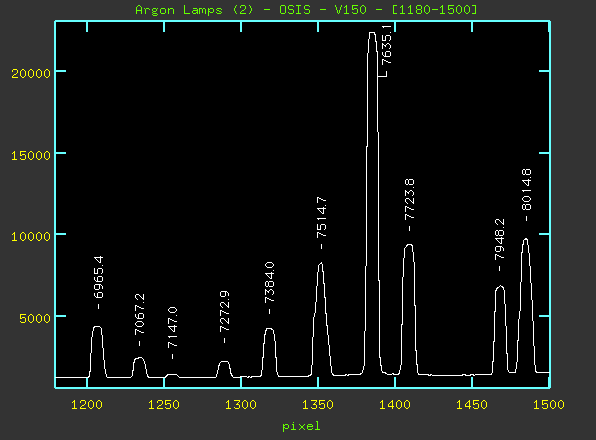

Argon Lamps

CUTS General Cut Cut Range [0-1200] Cut Range [1180-1500] Cut Range [1500-2000] Argon Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism V150 Order Sorting Filter None Exposure Times 2x Ar: 16s Average Dispersion 3.60 Å/pix

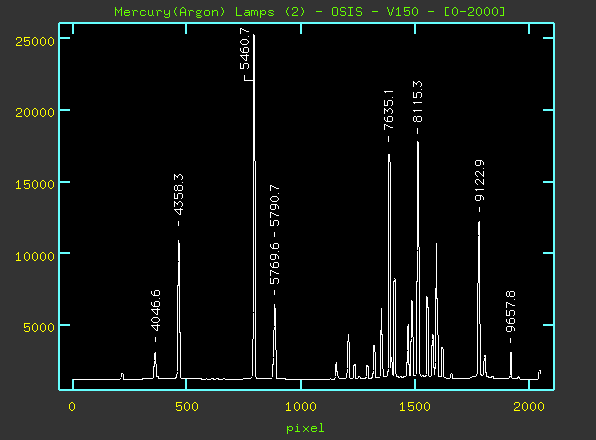

Mercury(Argon) Lamps

CUTS General Cut Cut Range [0-1000] Cut Range [1000-1500] Cut Range [1500-2000] Mercury(Argon) Spectral Line List

DETAILS PARAMETER VALUE Slit Height 1" Detector STIS 2 Grism V150 Order Sorting Filter None Exposure Times 2x Hg(Ar): 32s Average Dispersion 3.60 Å/pix

Halogen Lamp
